16ft x 10ft Antivandal Canteen

Cabin Details:

This 16ft x 10ft Antivandal Canteen cabin seats 6 people, providing a robust and secure dining space for team breaks. Built for durability & security.

Dimensions:

L: 4880mm W: 3050mm H: 2440mm

Dimensions:

L: 3660mm W: 3050mm H: 2440mm

Cabin Spec

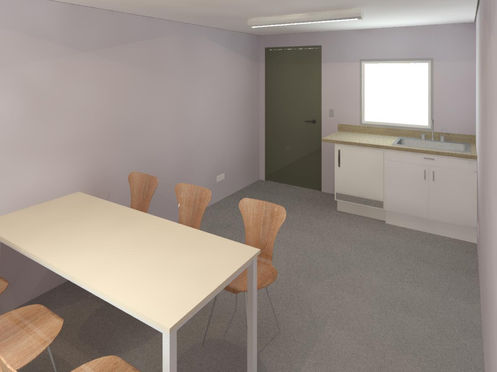

Interior Finish

The interior features 12.5mm vinyl-faced plasterboard walls, PVC tilt & turn windows, a ceiling finished with vinyl-faced ply, and 30mm HD insulation. It's internally wired to a consumer unit with relevant breakers for safety.

Exterior Finish

The exterior features a robust base frame made of 125mm x 65mm rolled steel, complemented by unique block-pressed steel panels. Fully welded for durability, it is coated with high zinc phosphate for corrosion resistance. Integrated steel jacklegs and top lifting points facilitate easy transportation and installation.

Roof Structure

The roof is equipped with 30mm HD insulation (0.35 W/m.k) for optimal temperature control. Supporting the roof are 3 x 2 timbers spaced at 600mm intervals. Additionally, a polythene vapor barrier is installed to prevent moisture penetration.

Floor Structure

The floor comprises 25mm T&G plywood spruce for durability and stability. Steel floor joists provide structural support, ensuring strength and longevity. The floor is further reinforced with timber framework spaced at 400mm intervals for additional support.
