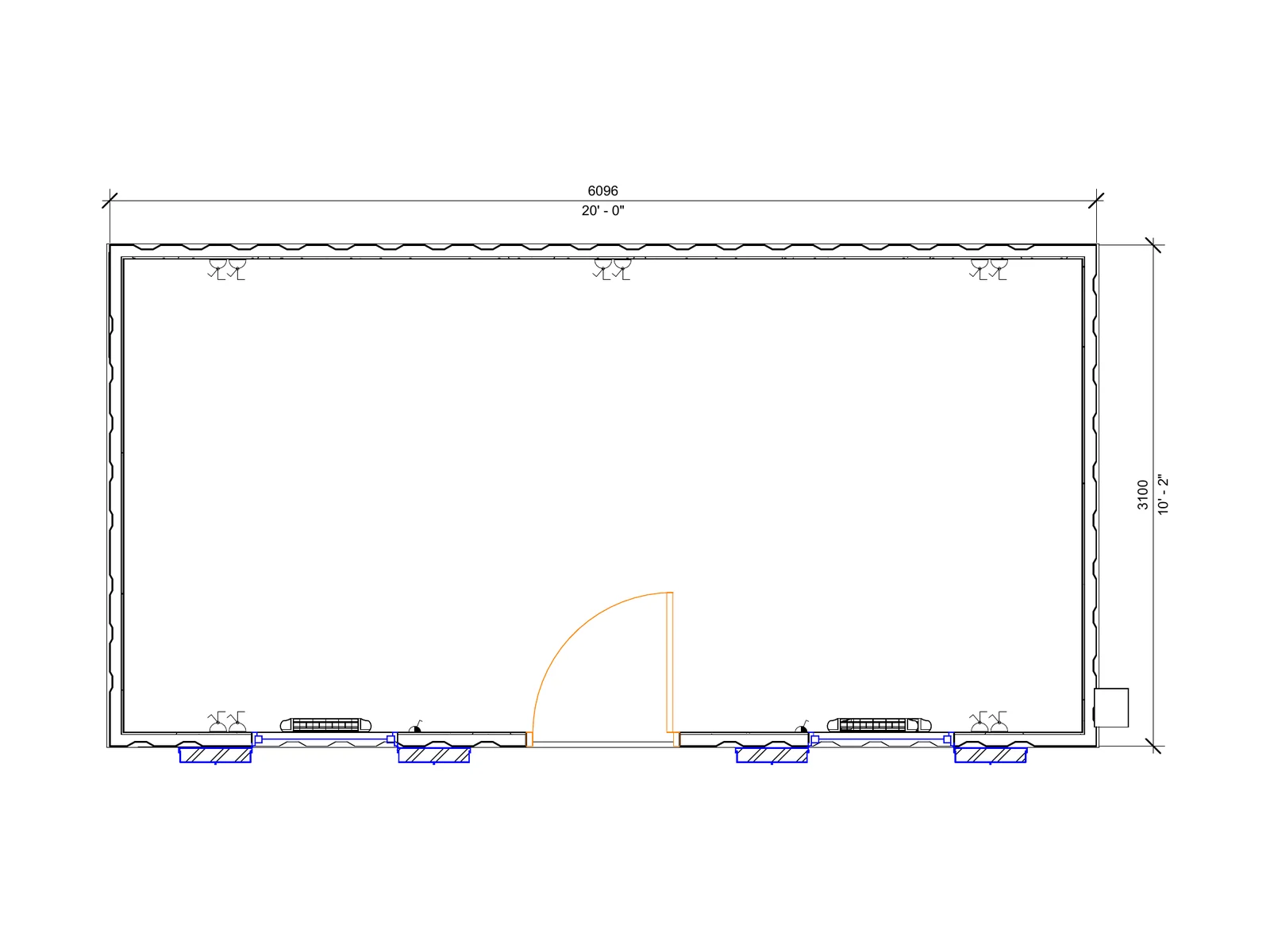

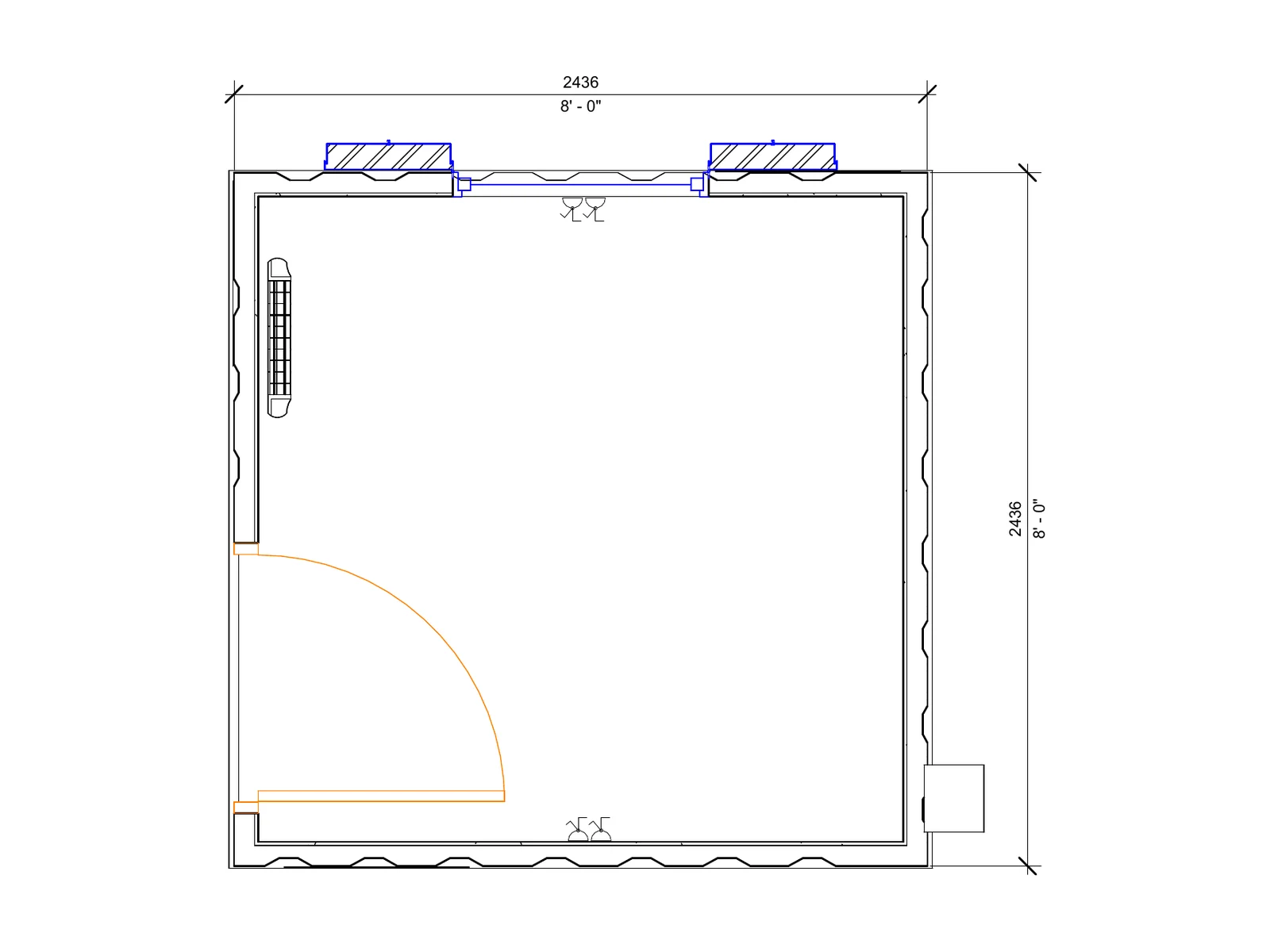

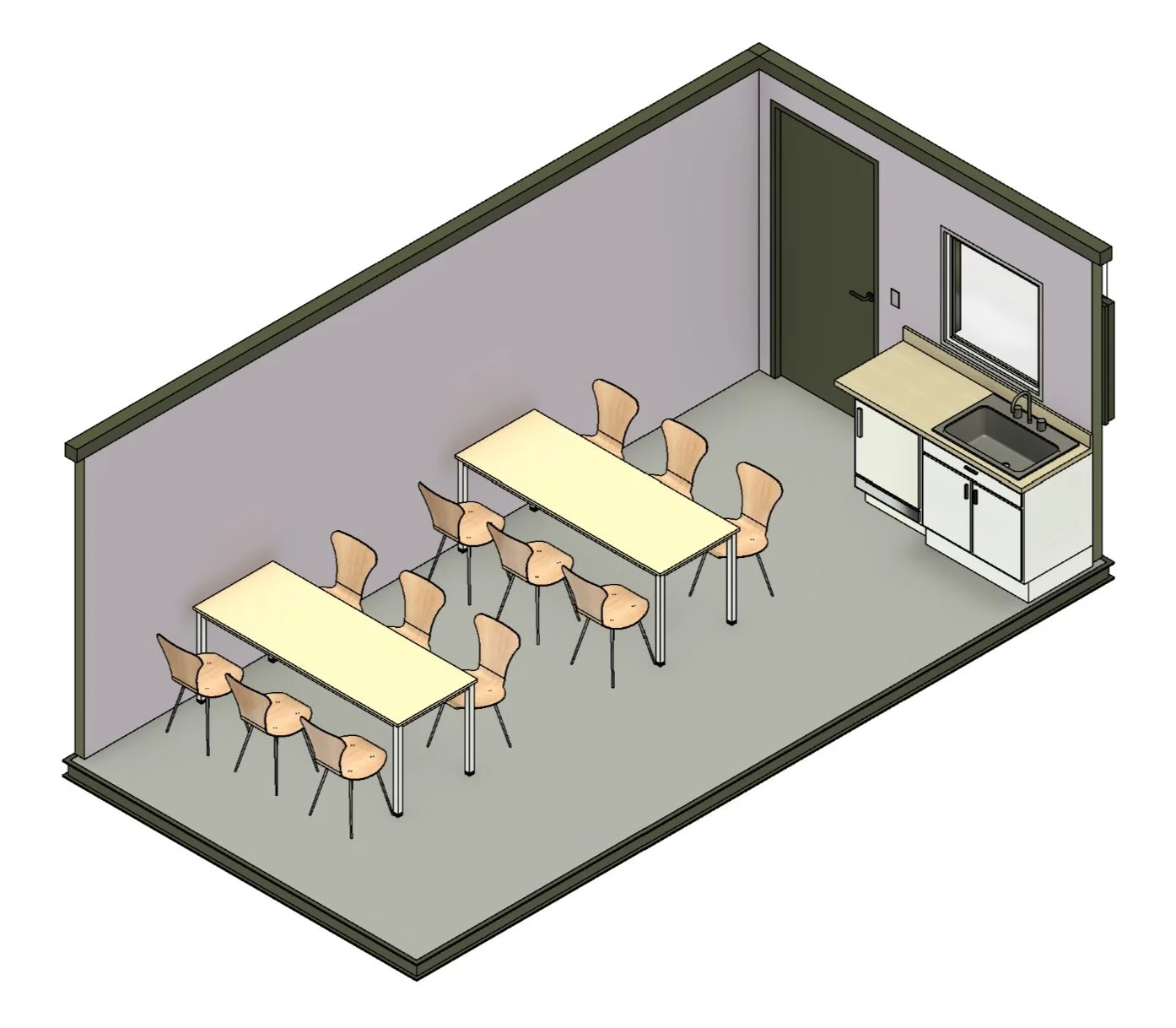

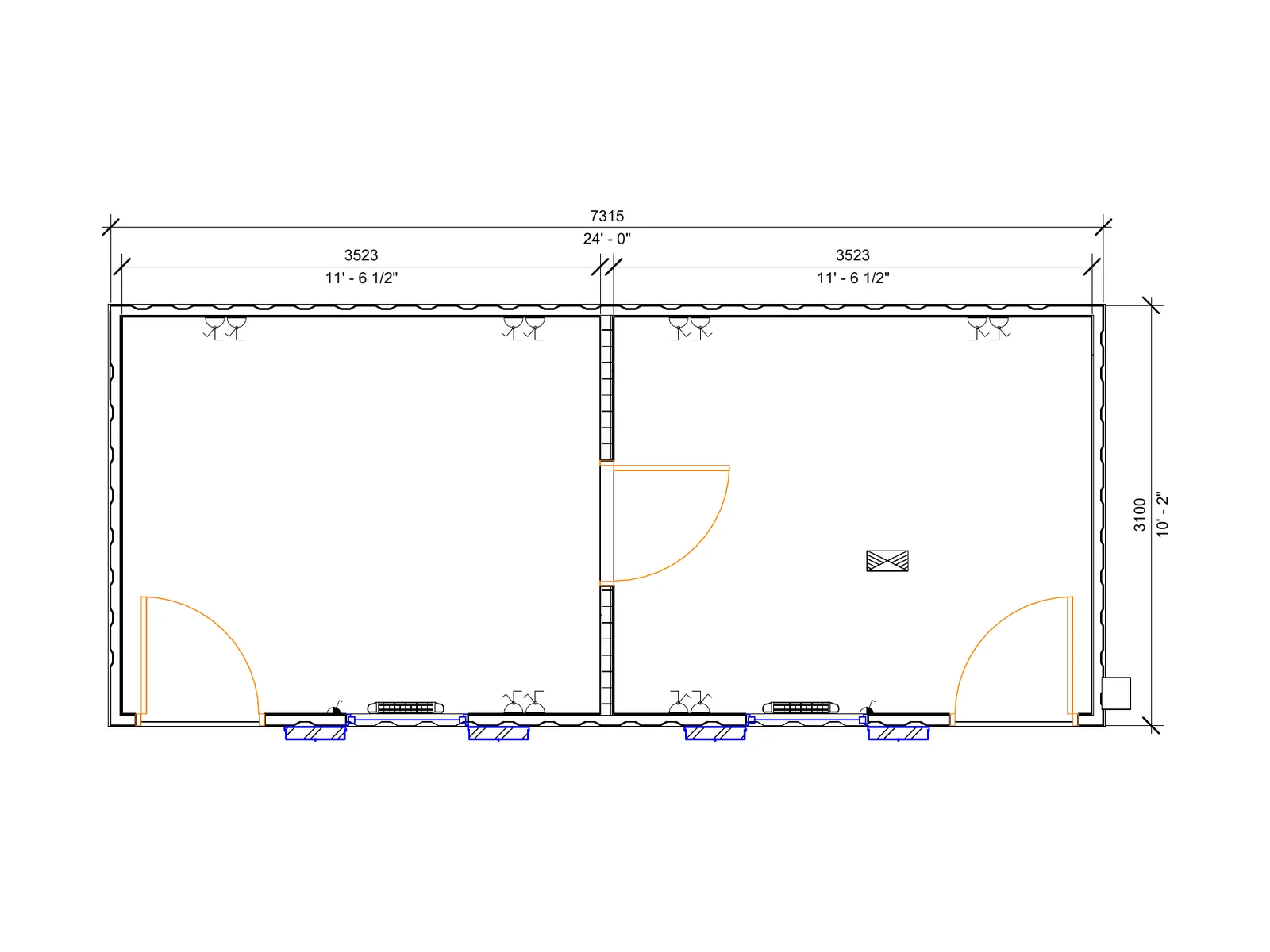

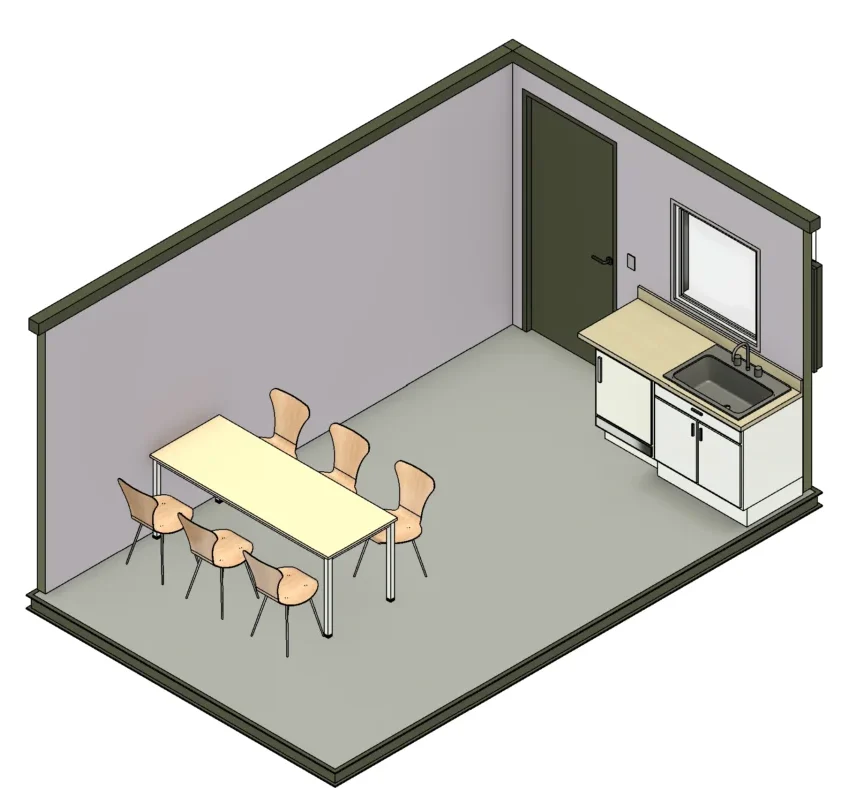

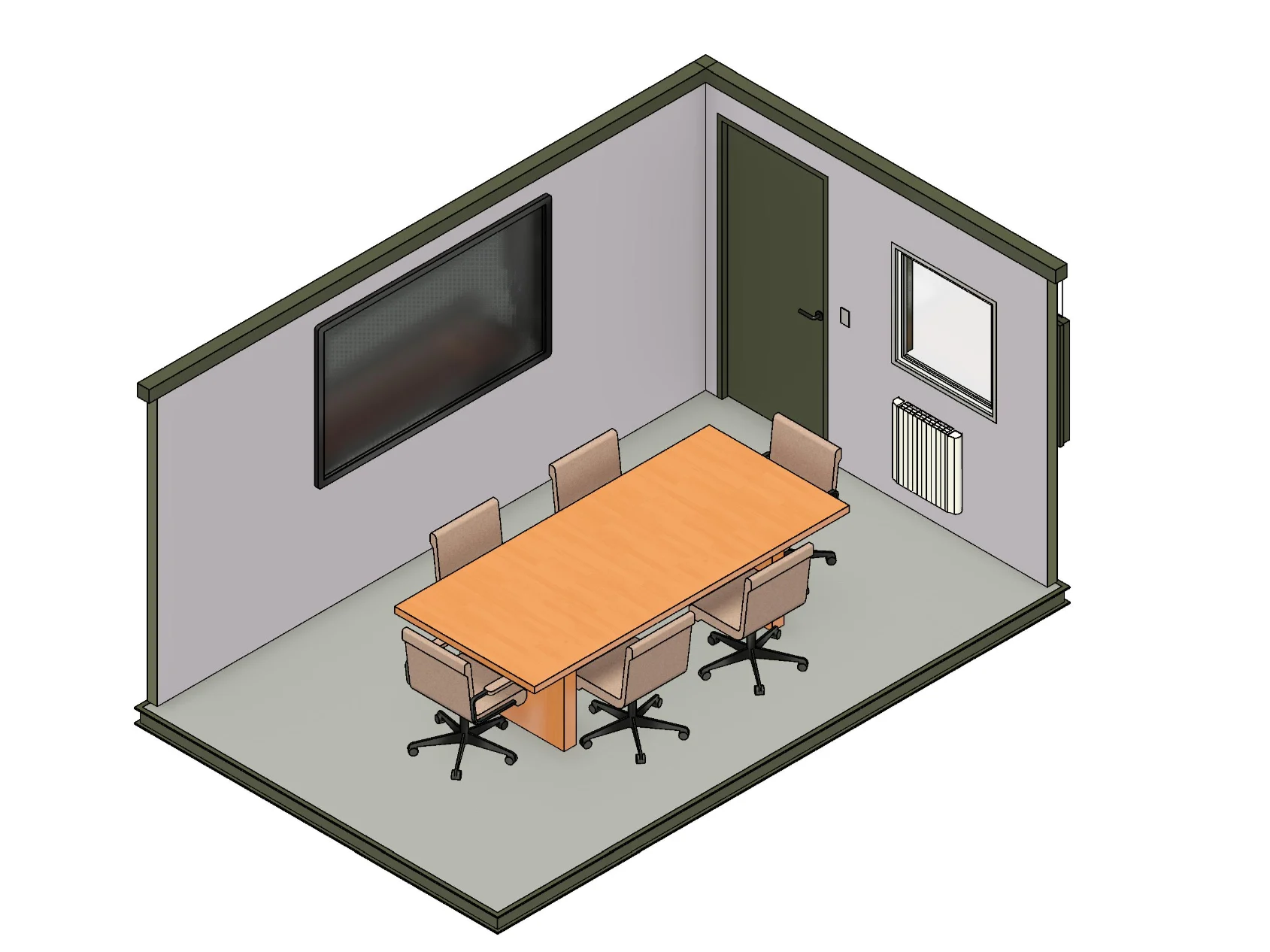

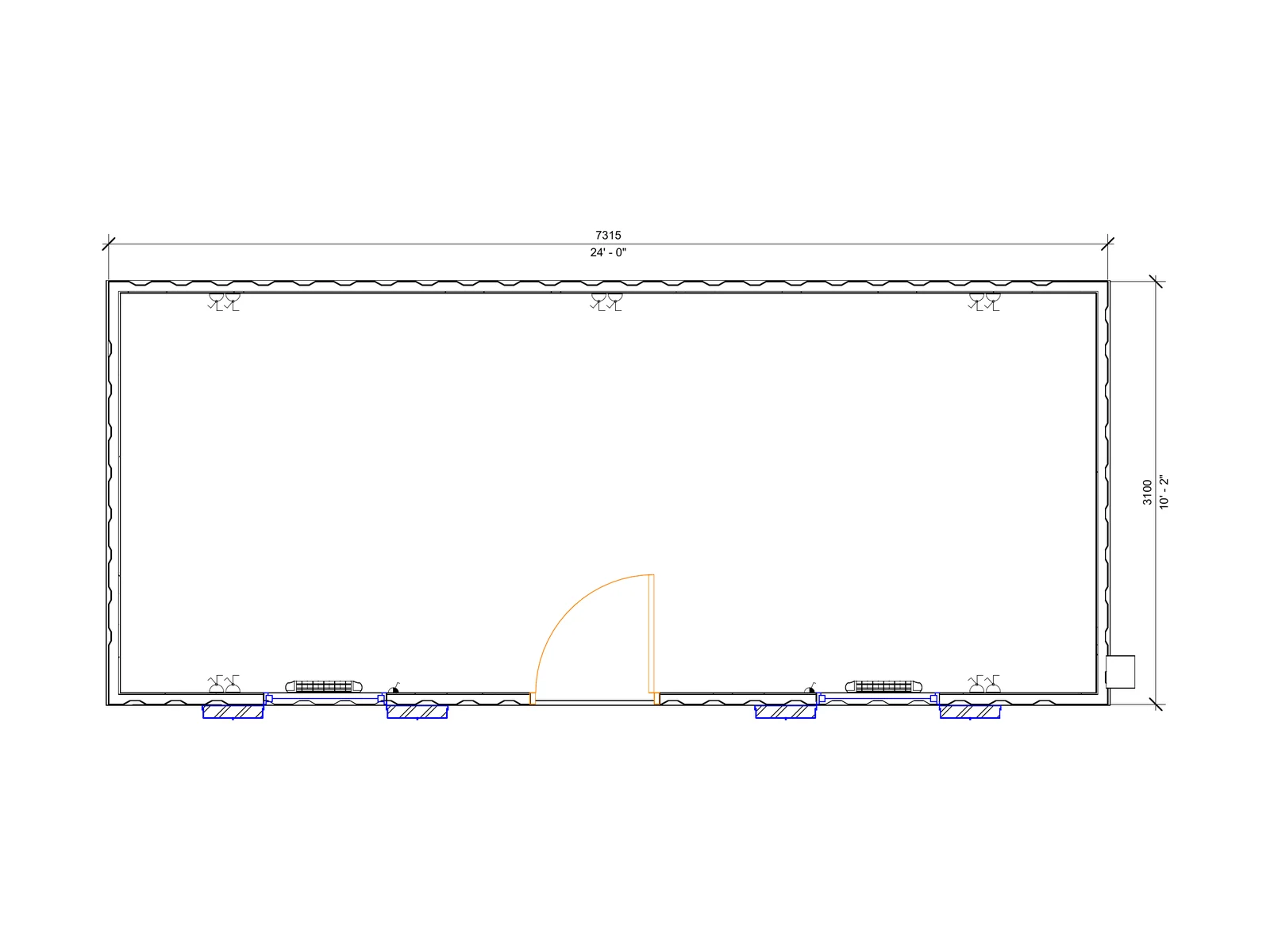

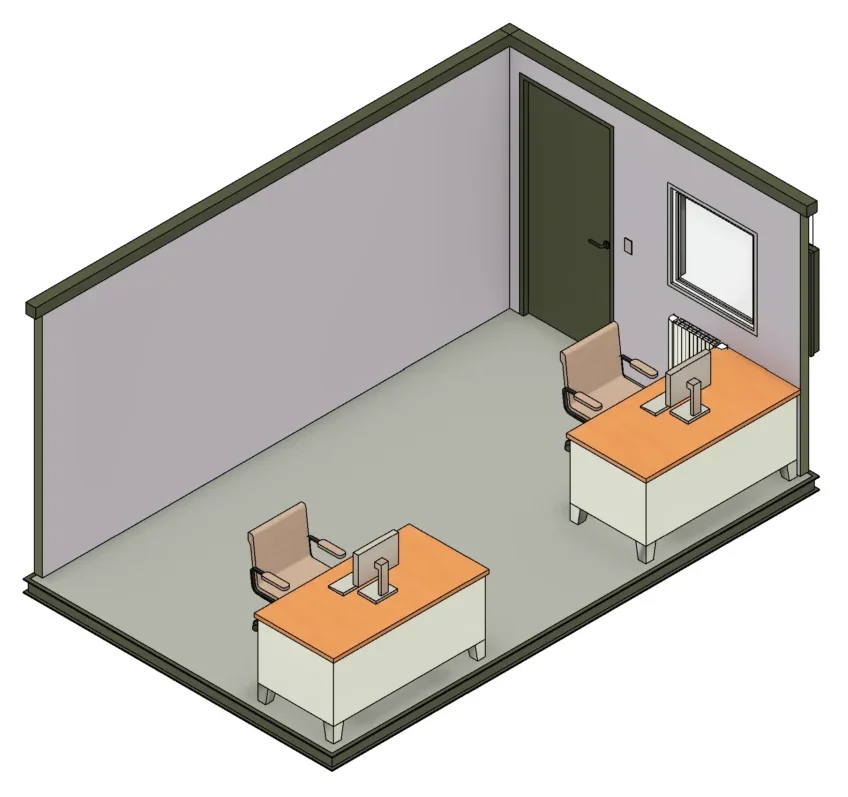

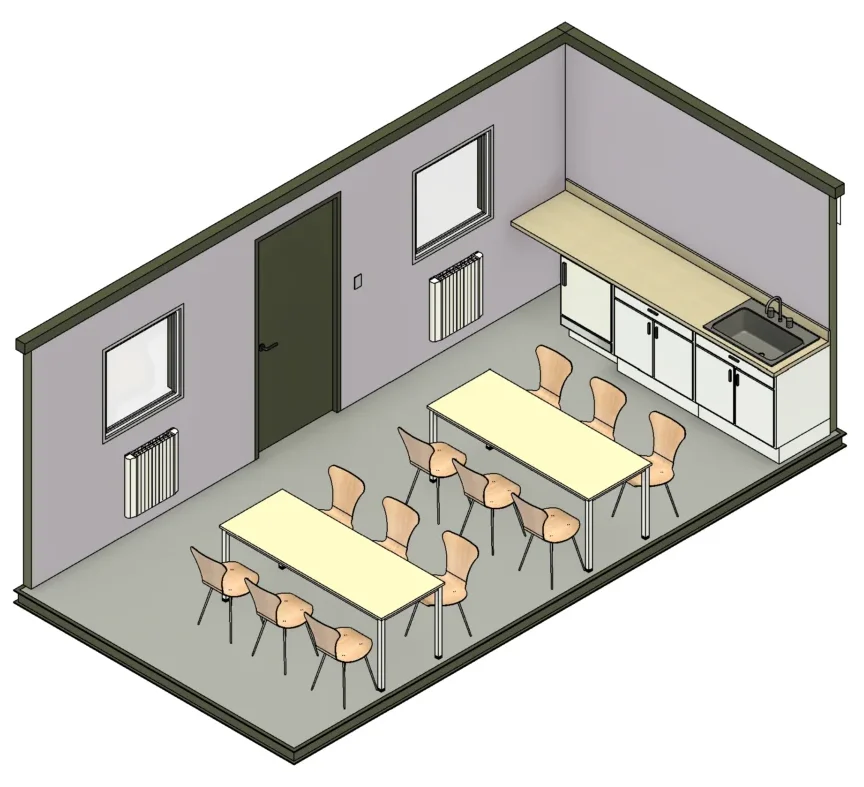

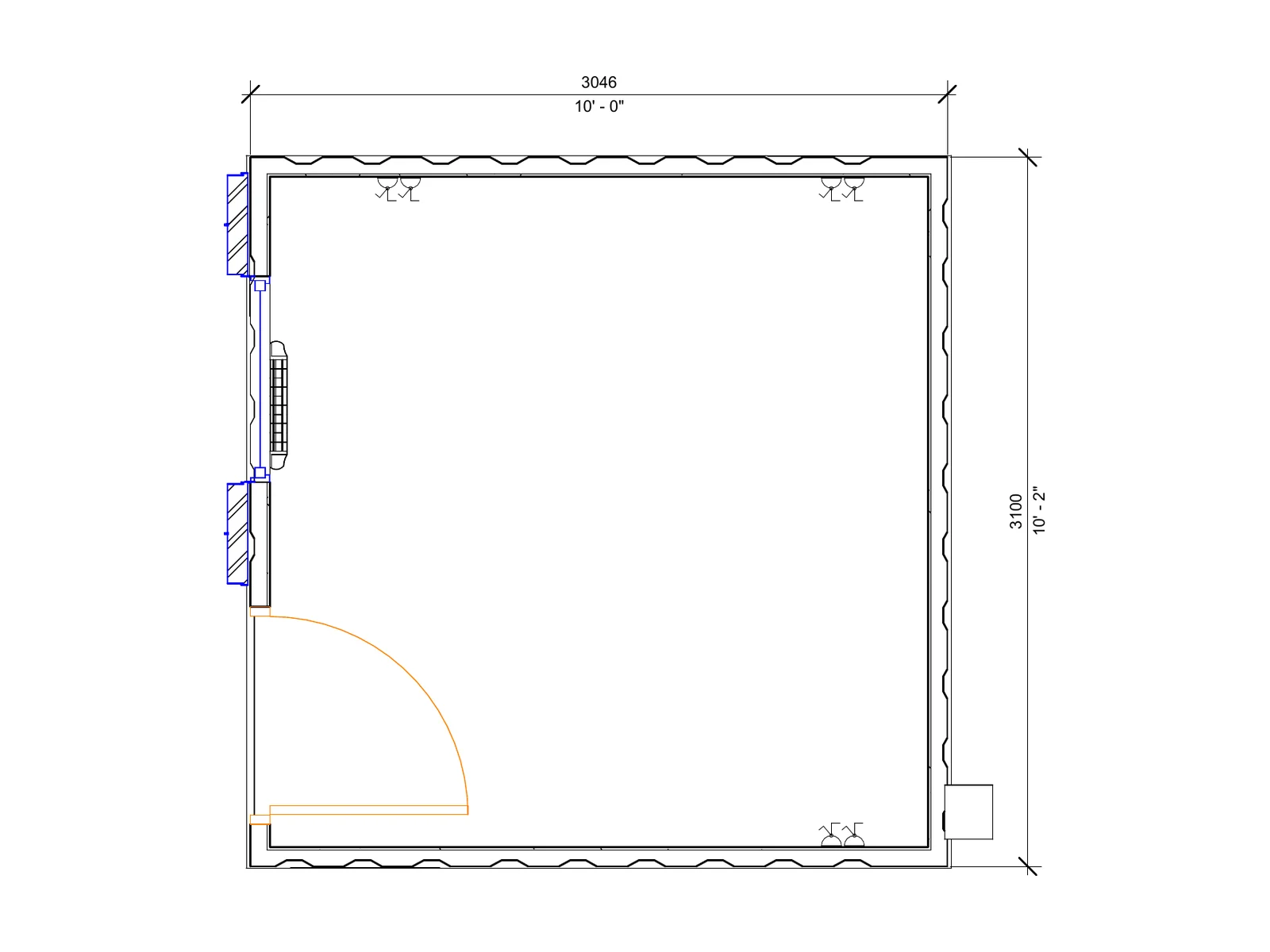

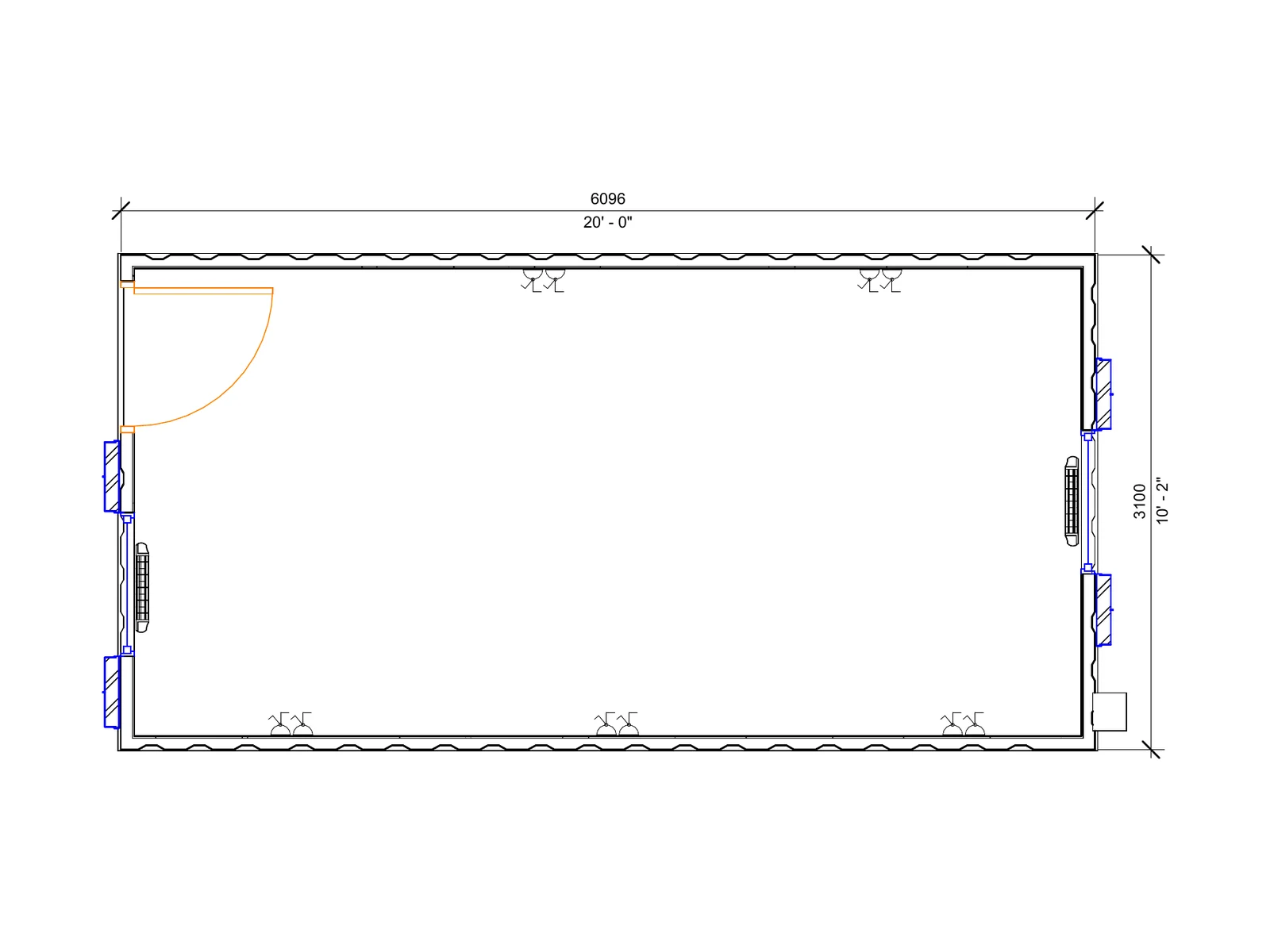

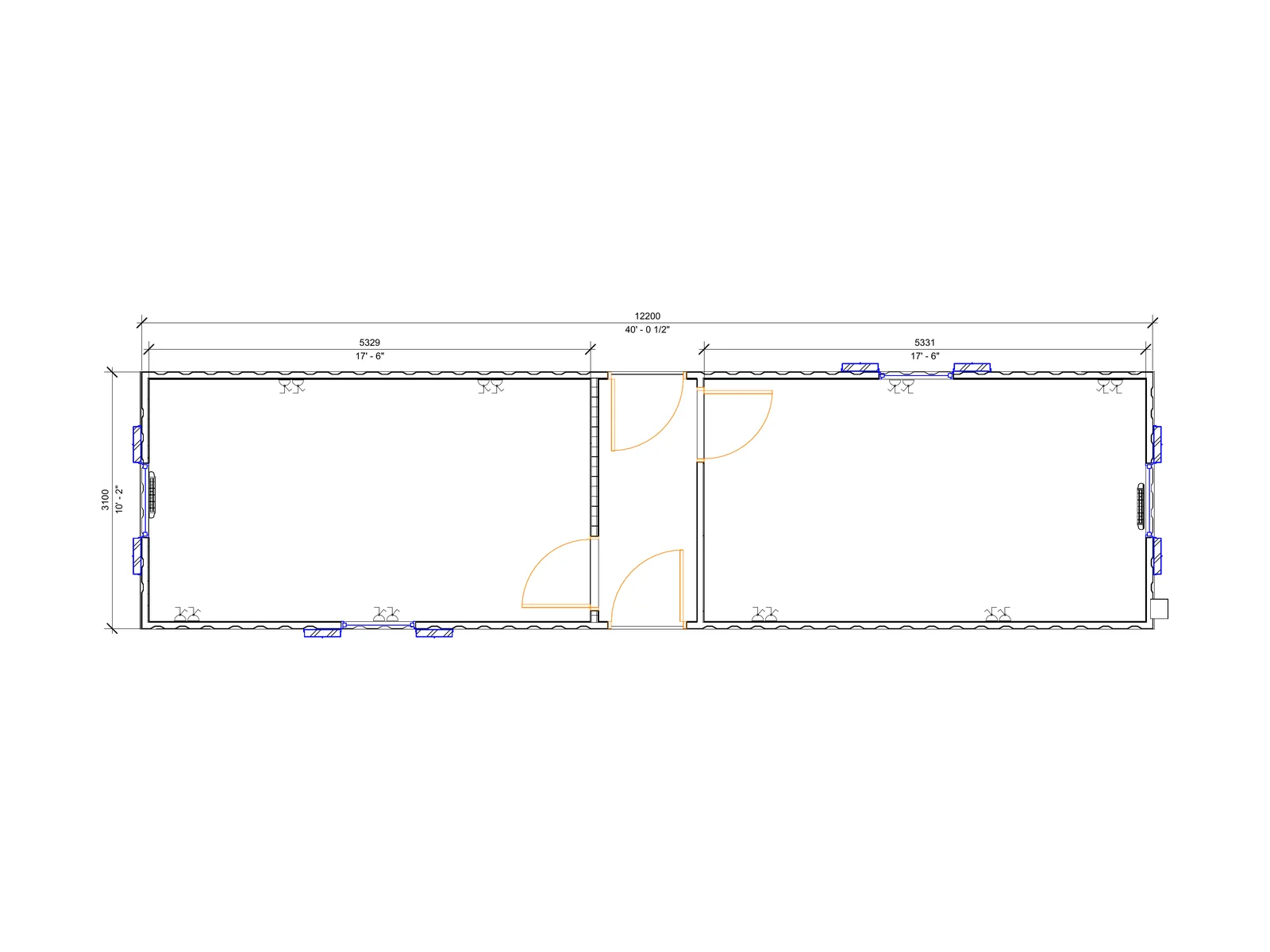

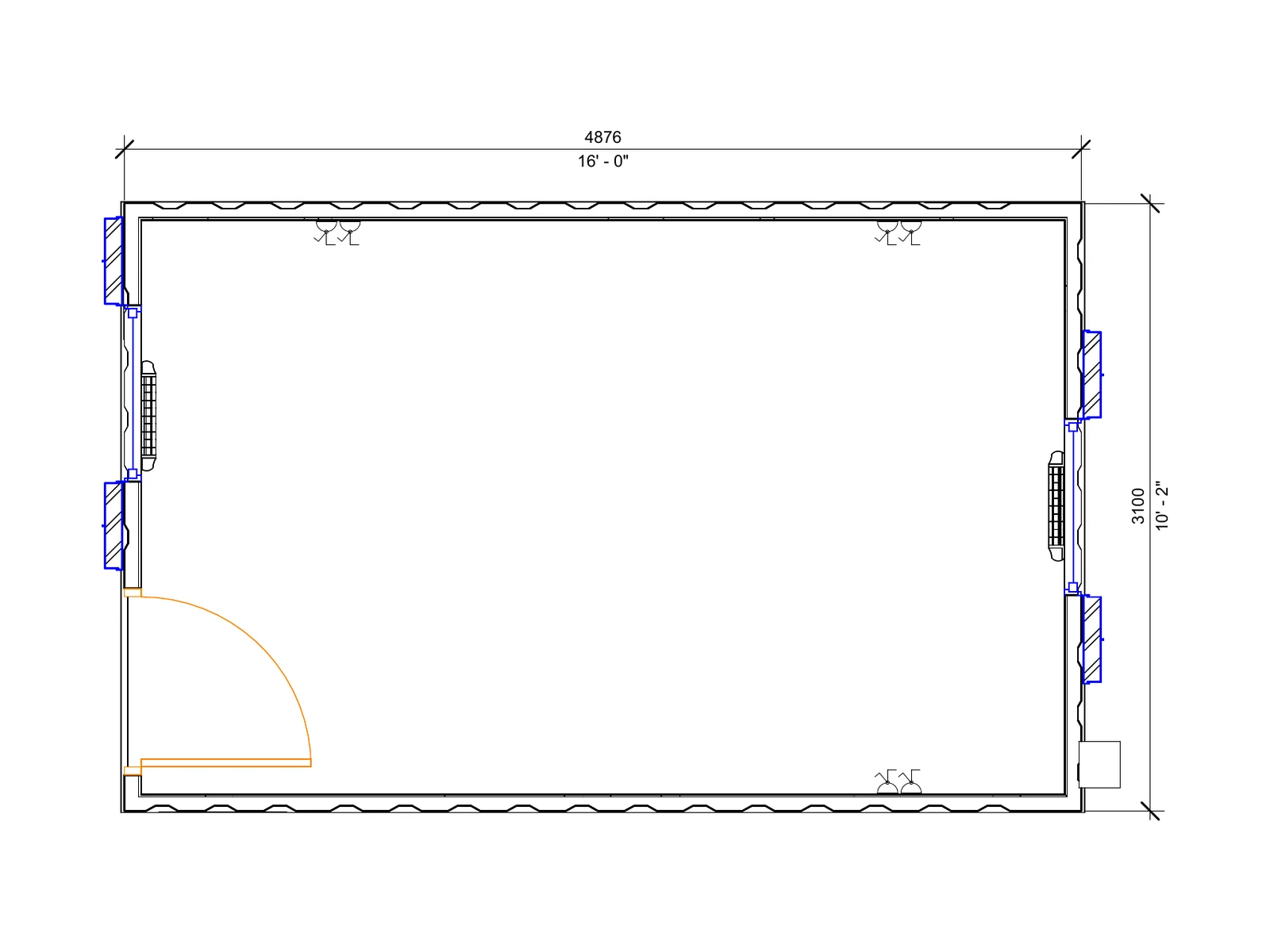

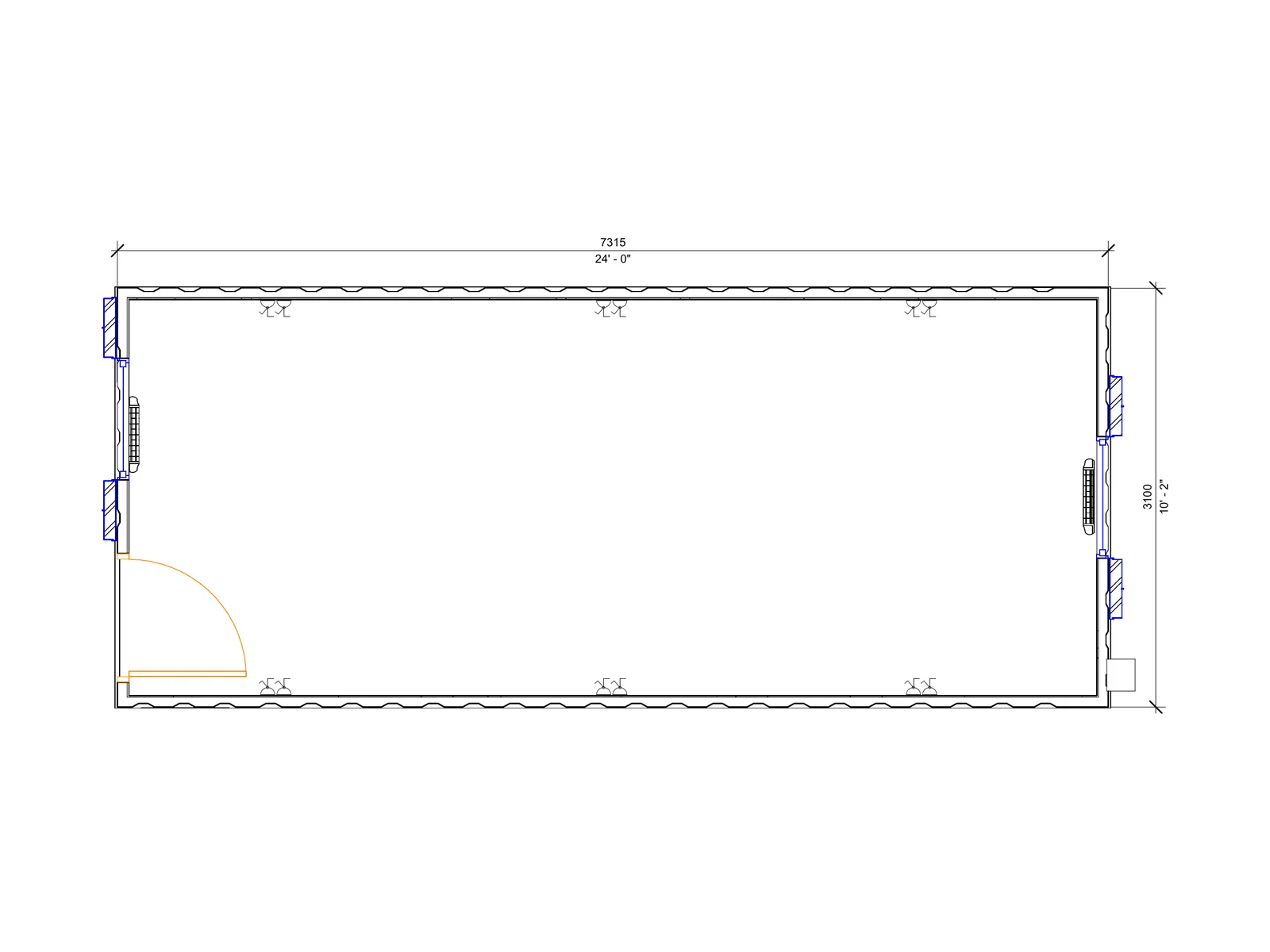

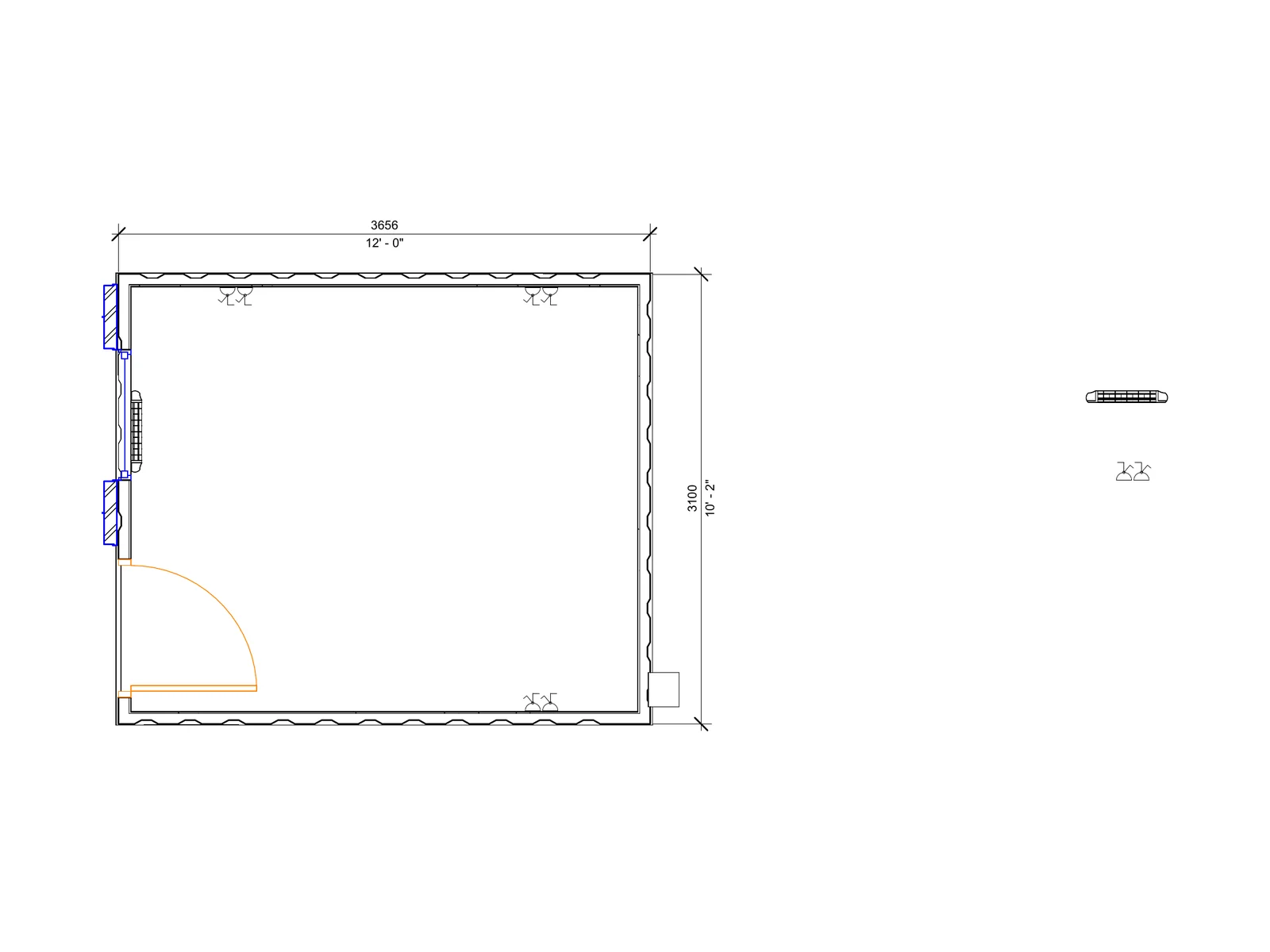

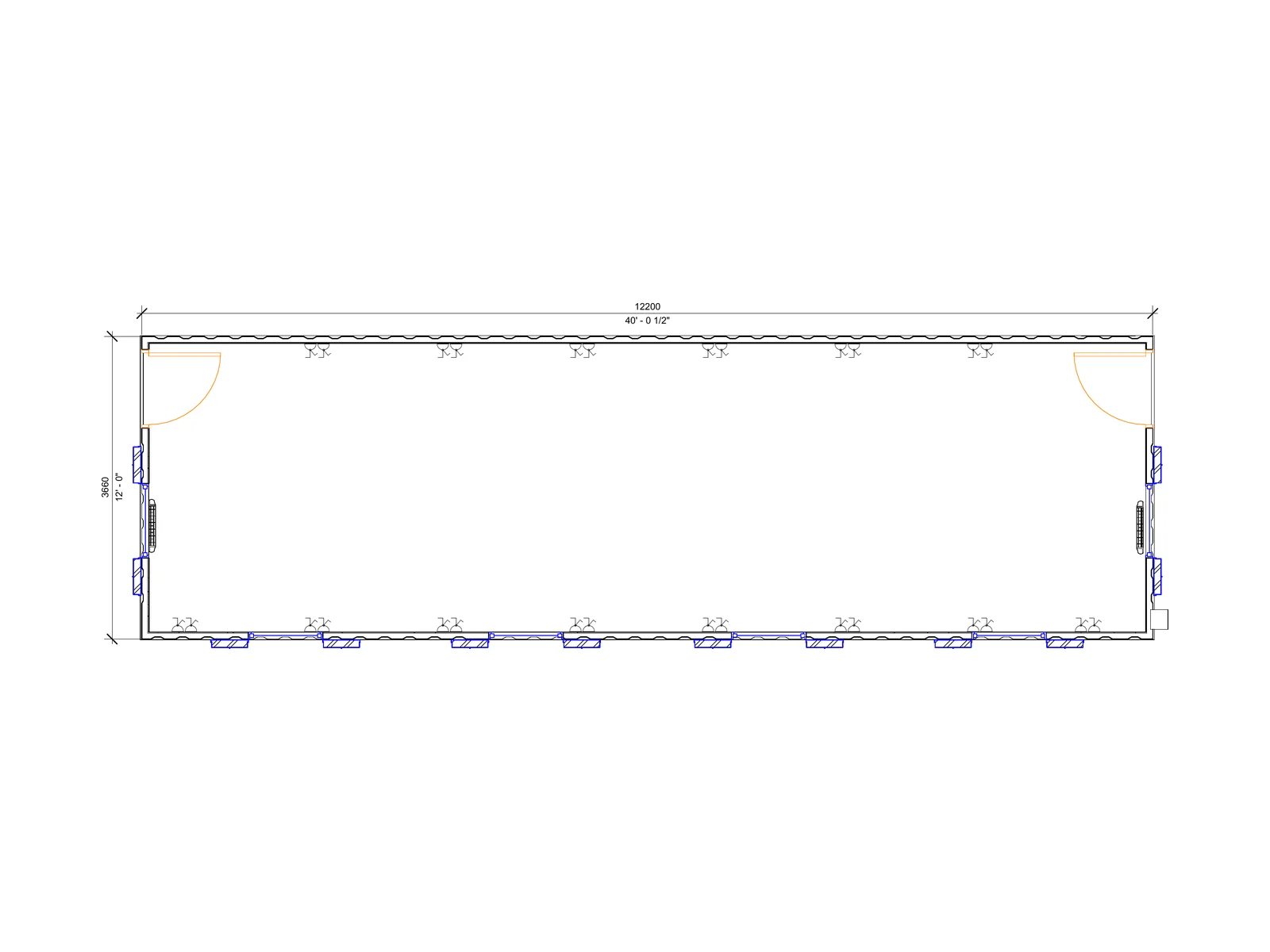

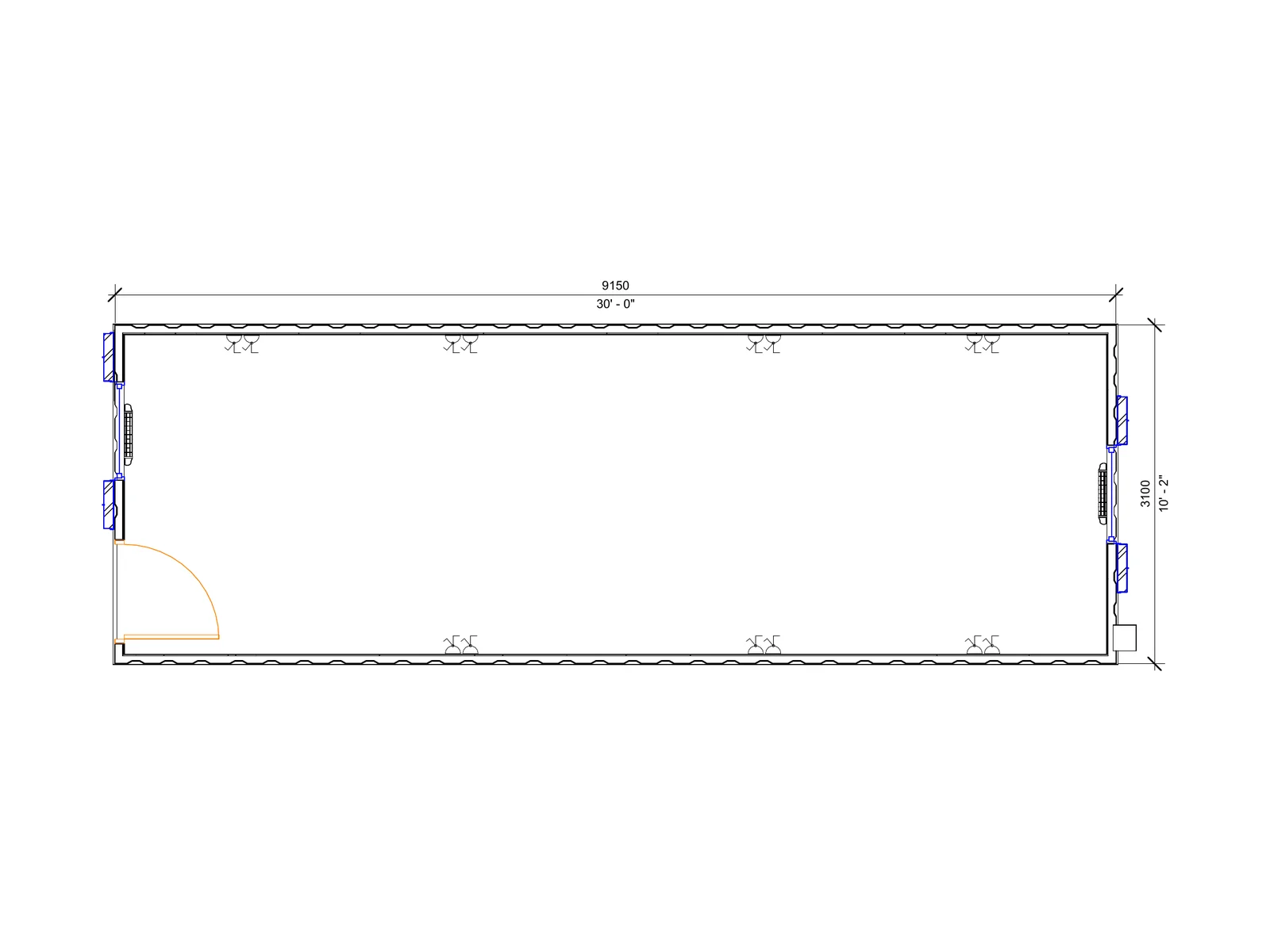

Antivandal Cabin Layouts

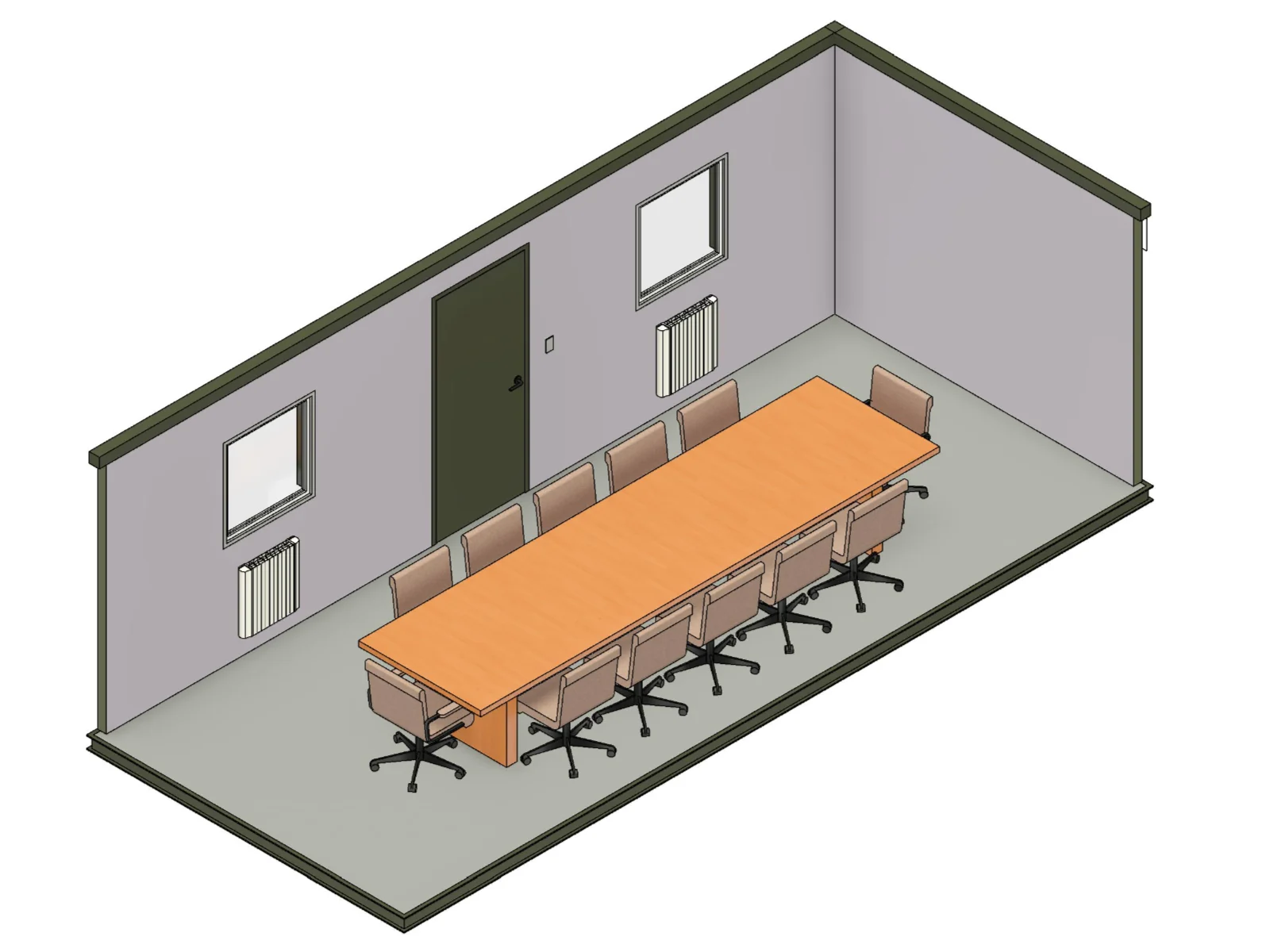

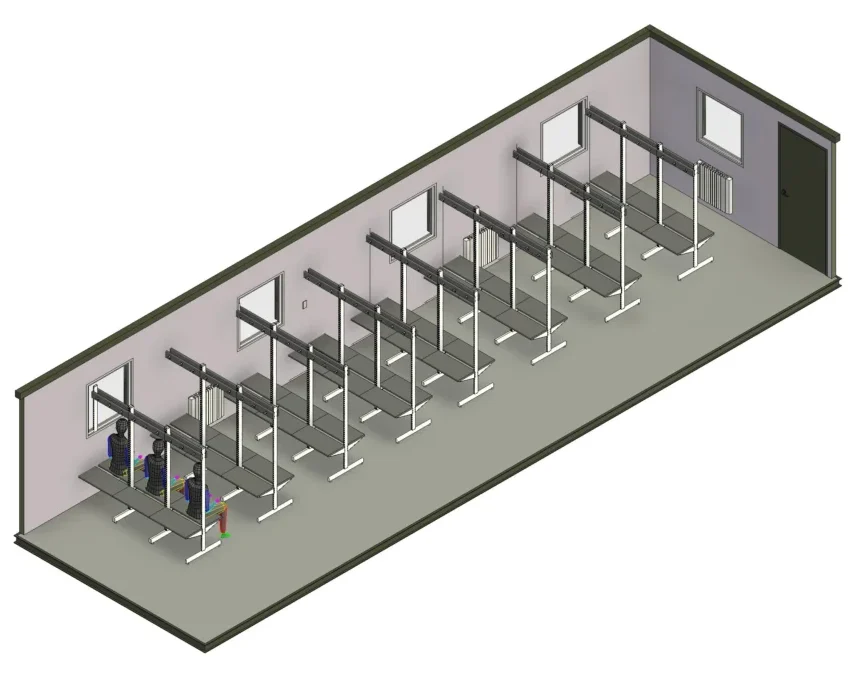

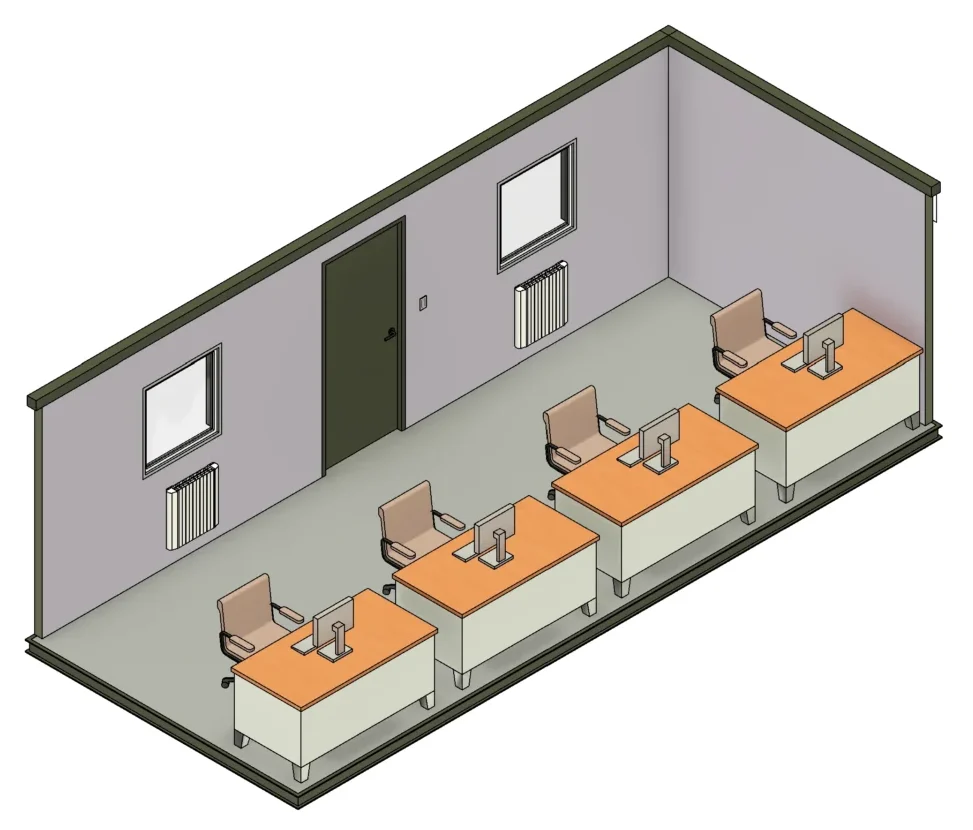

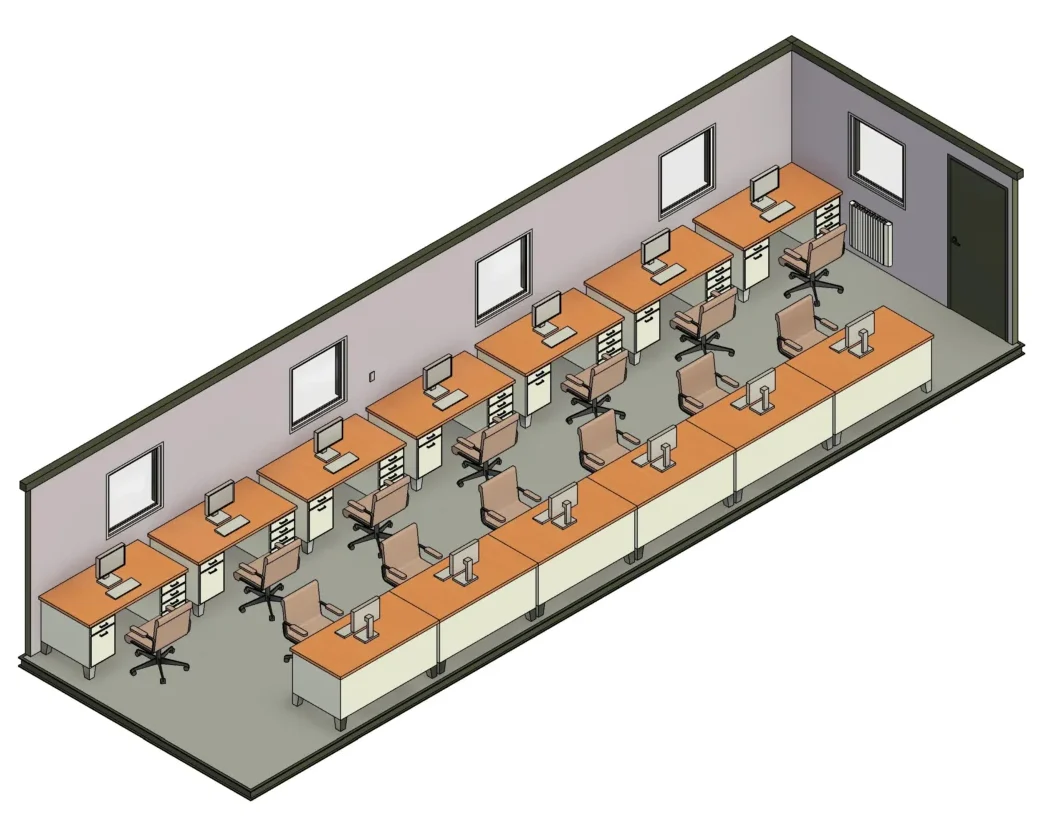

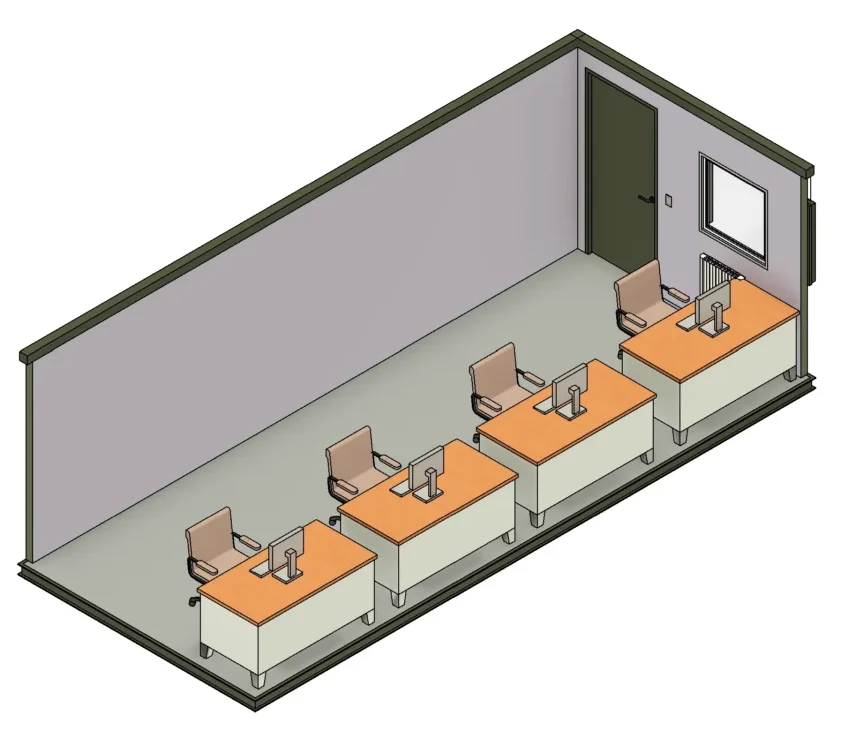

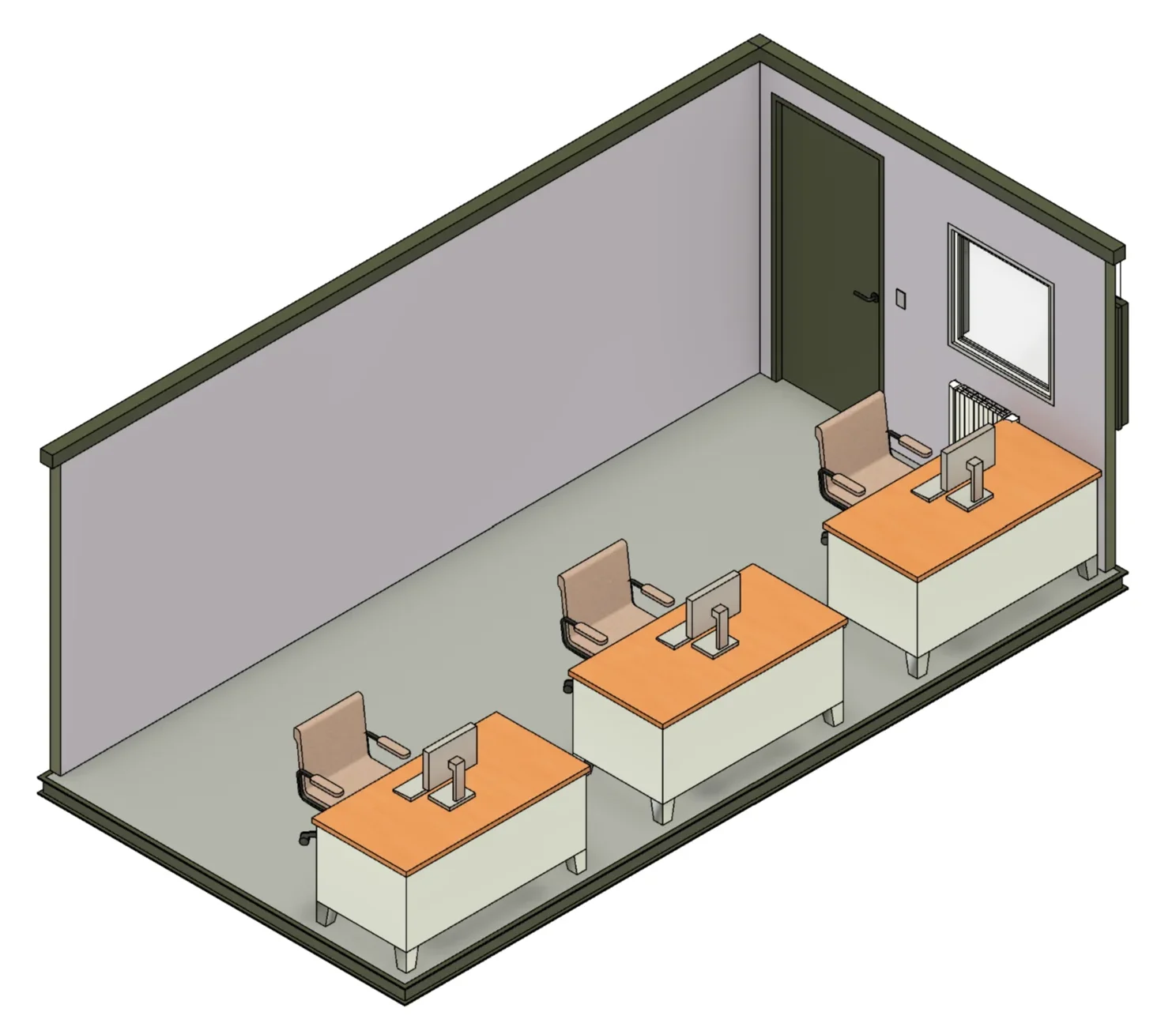

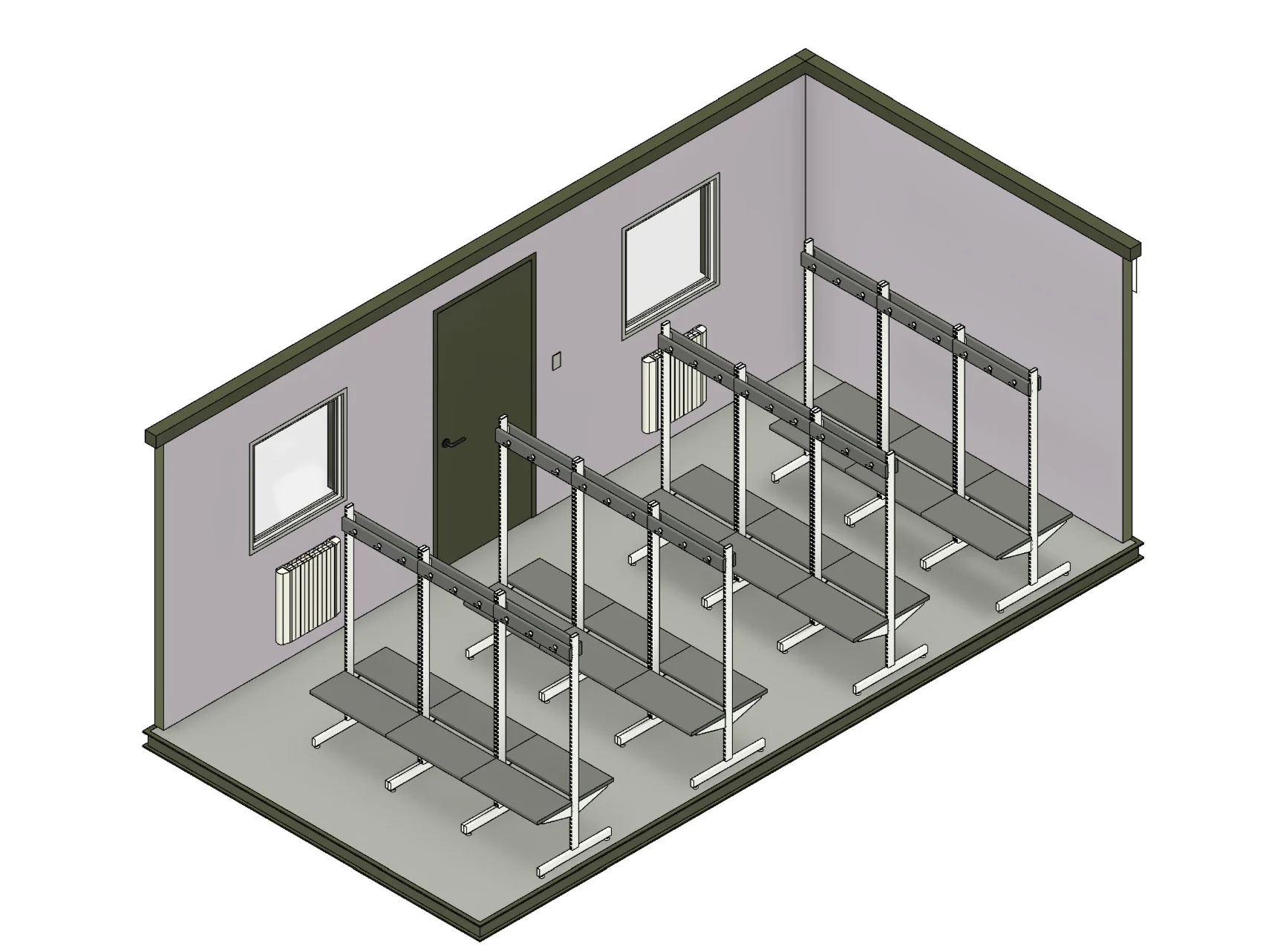

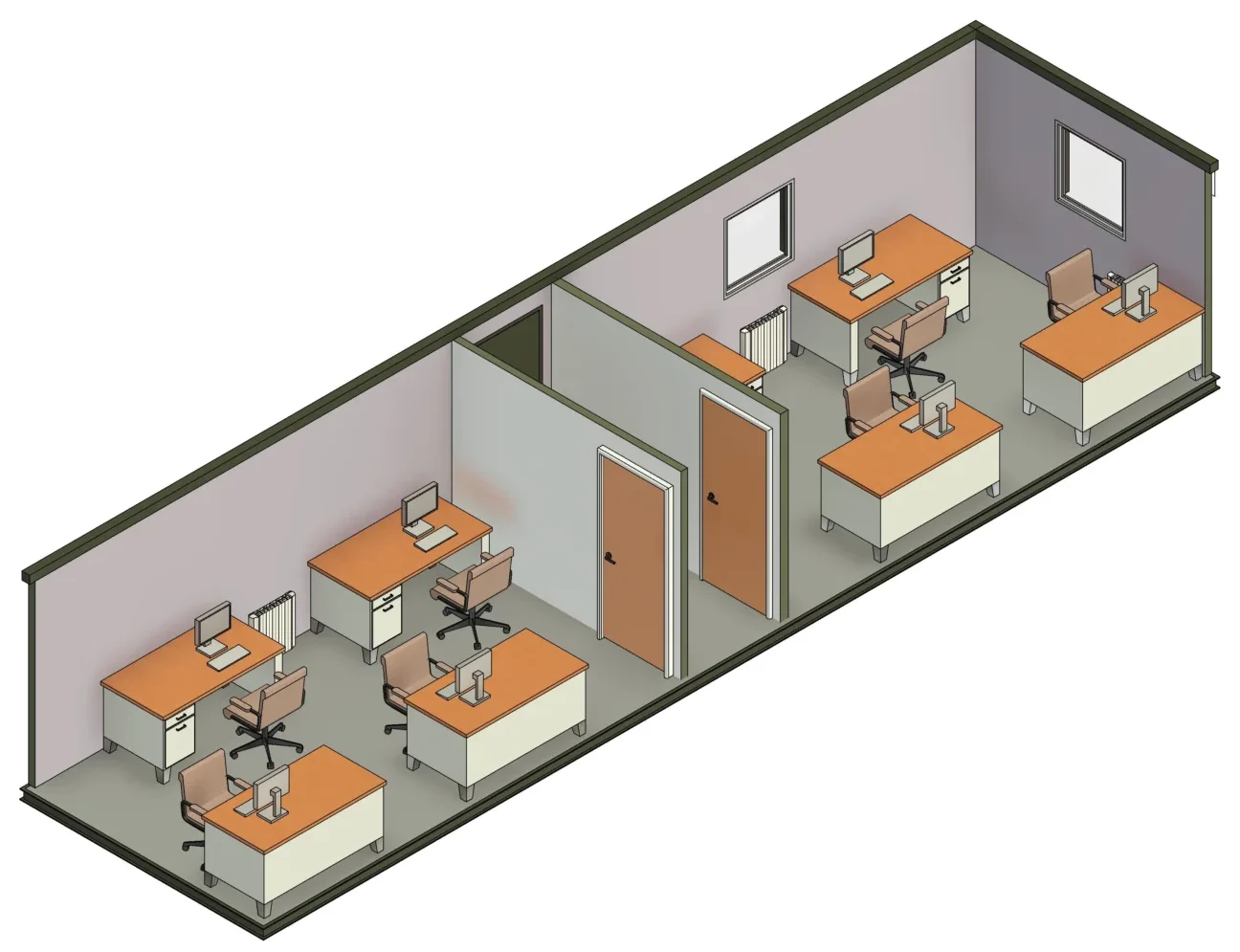

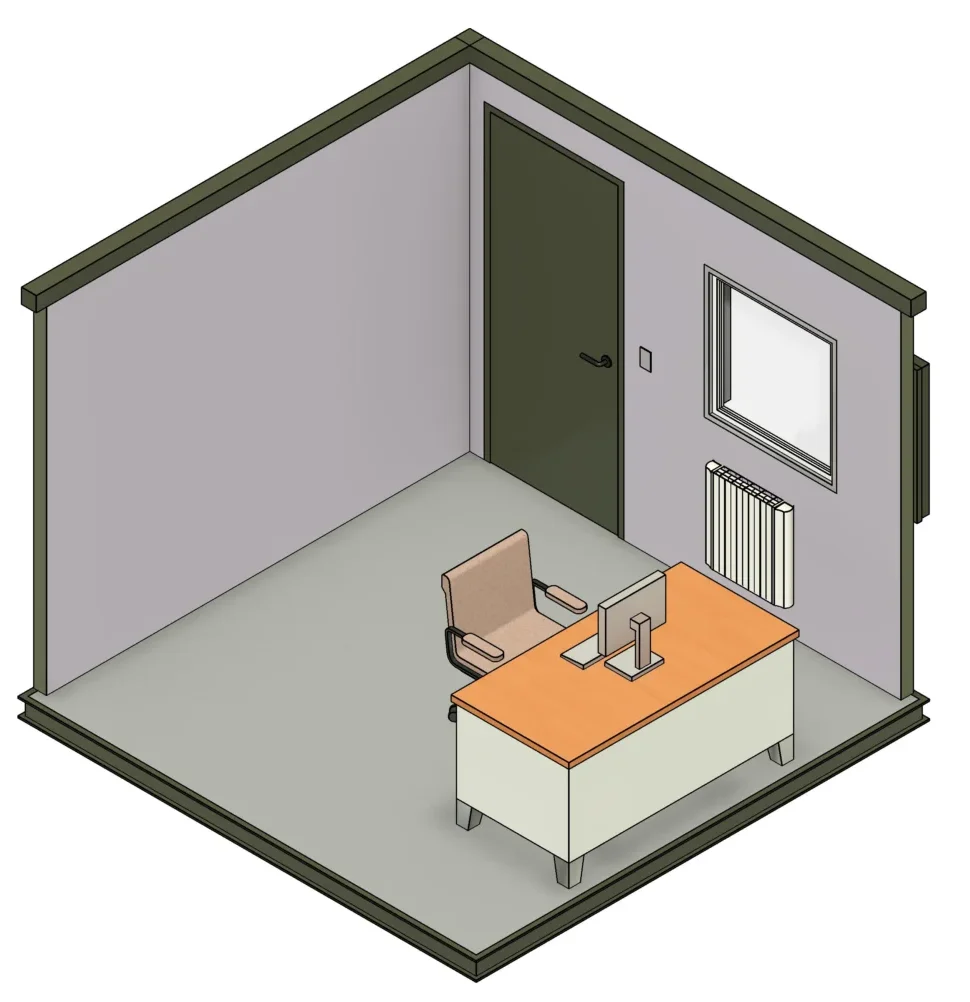

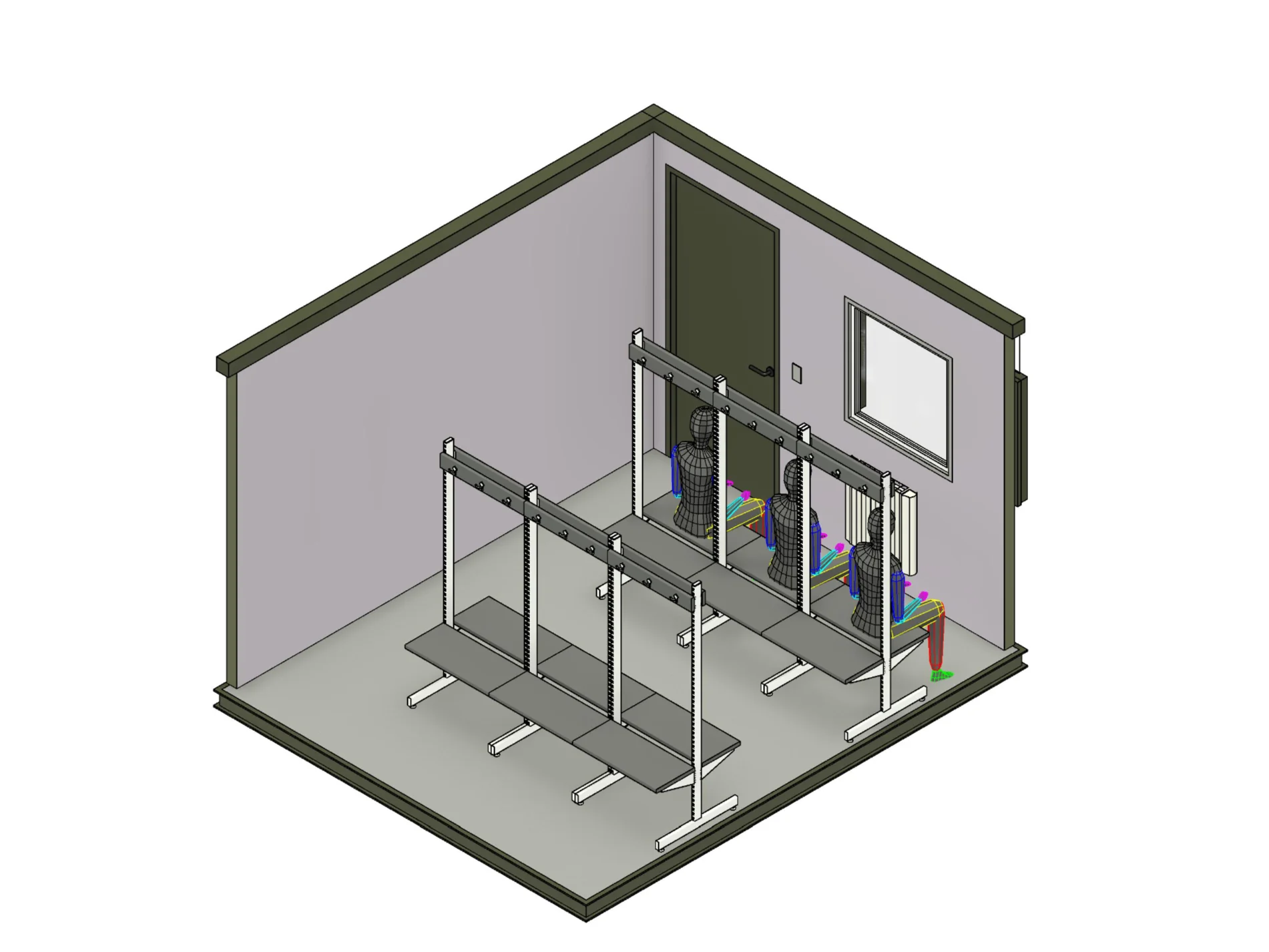

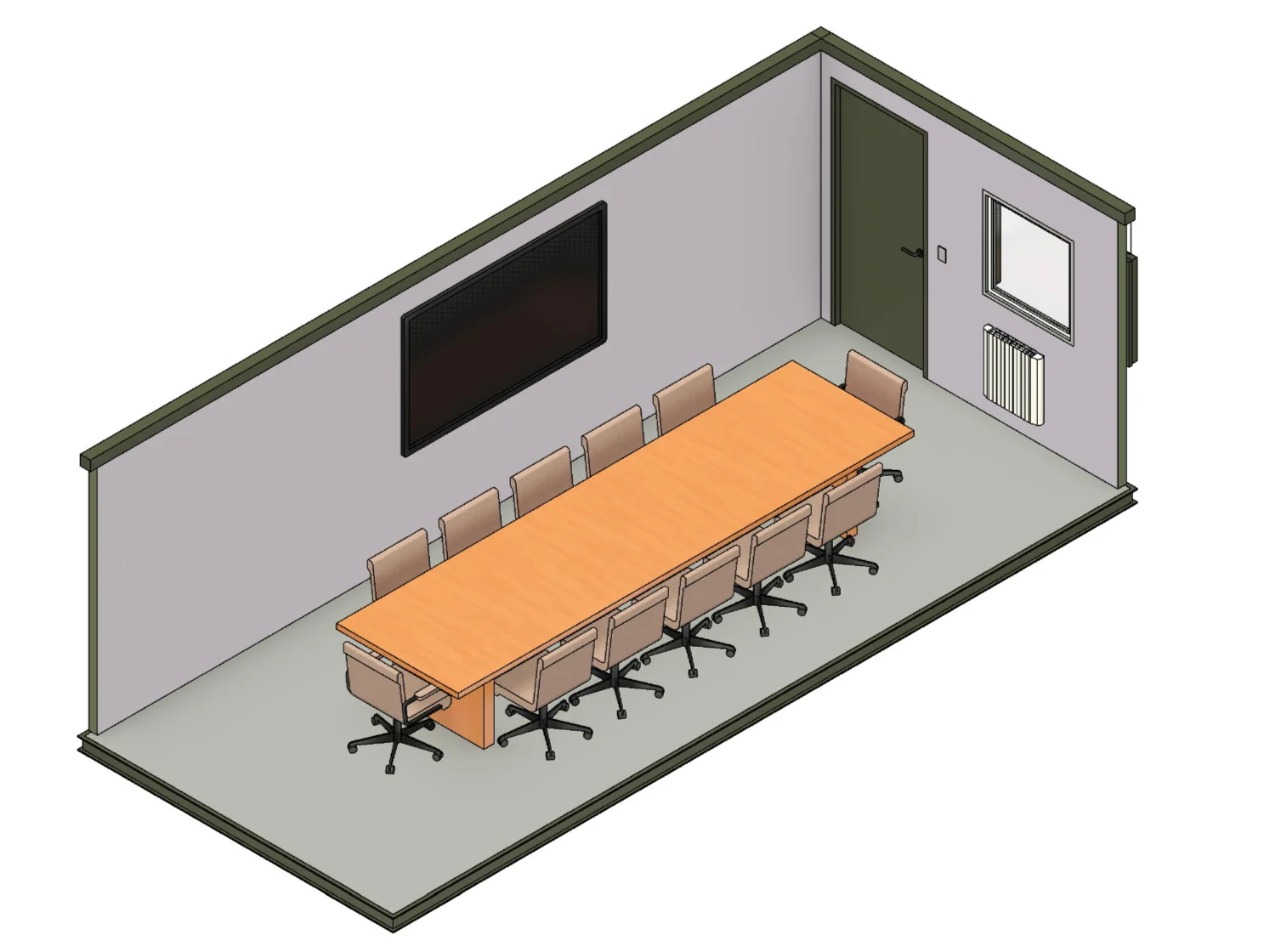

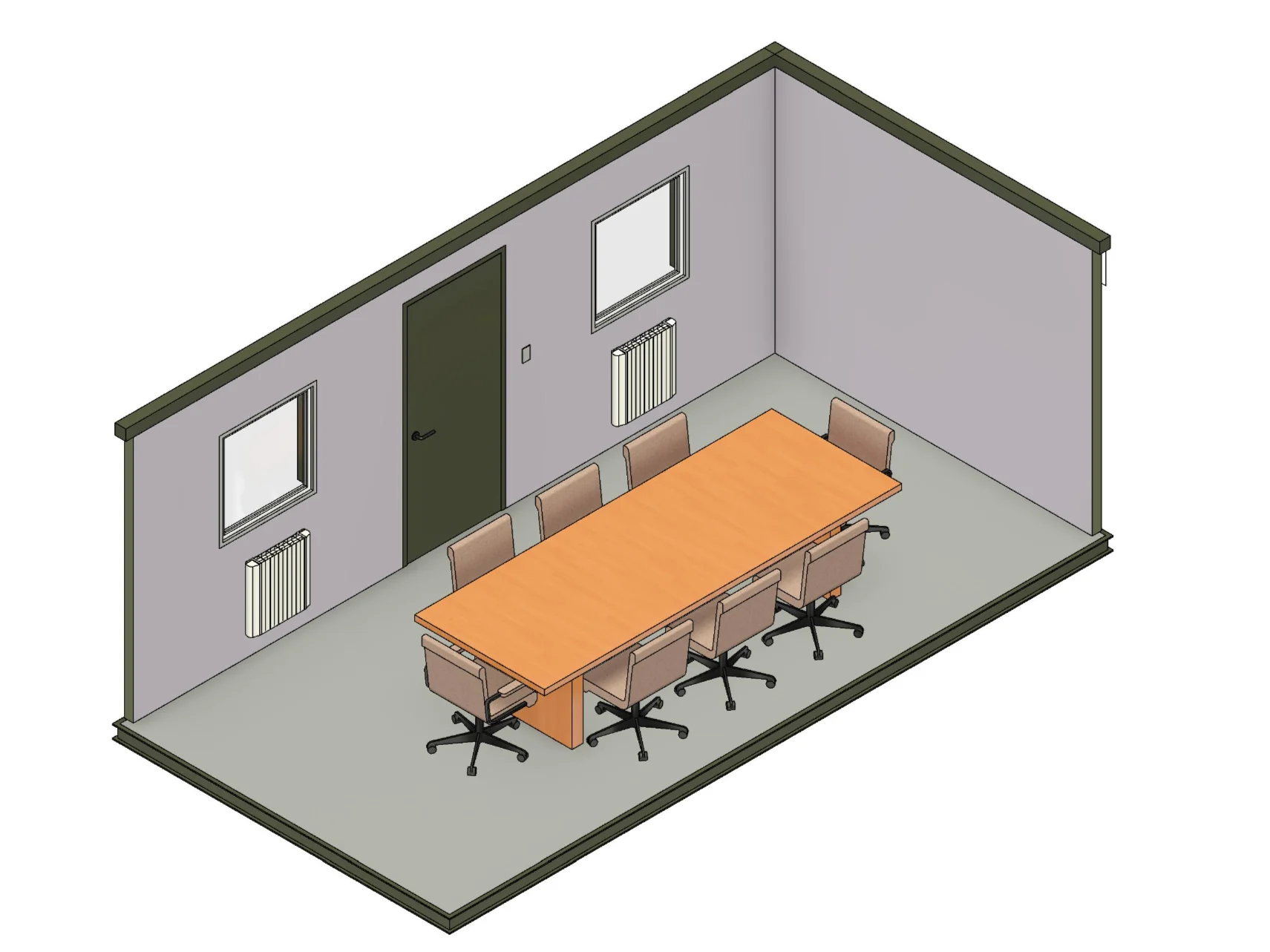

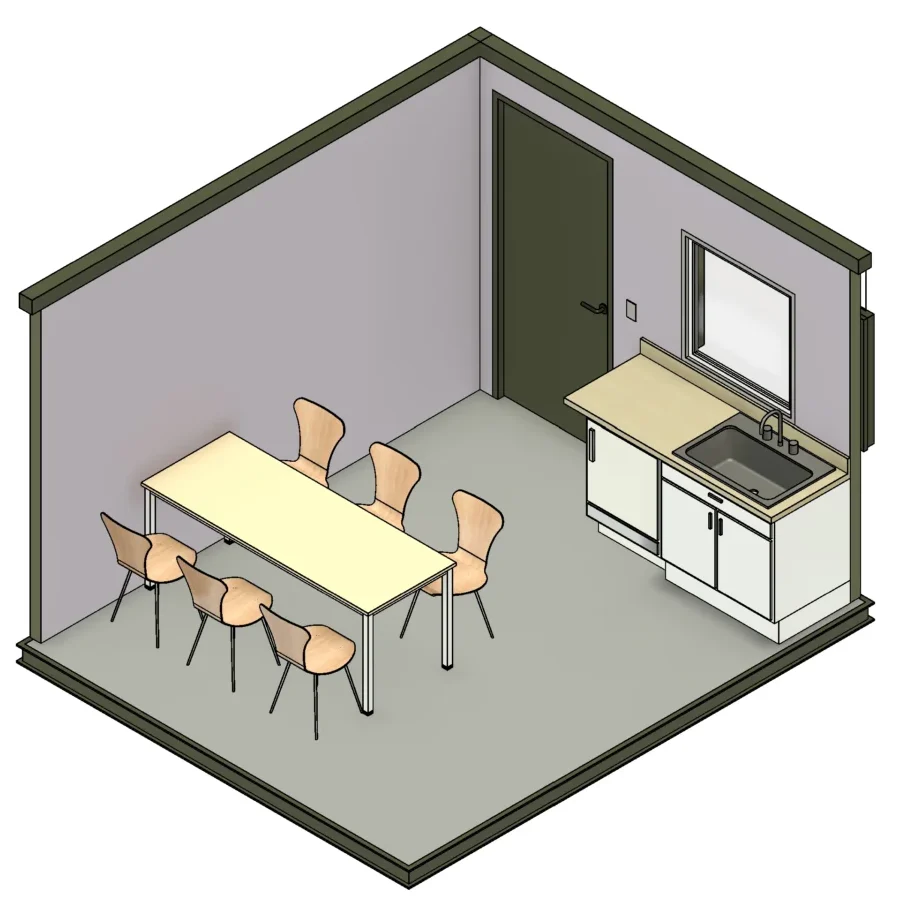

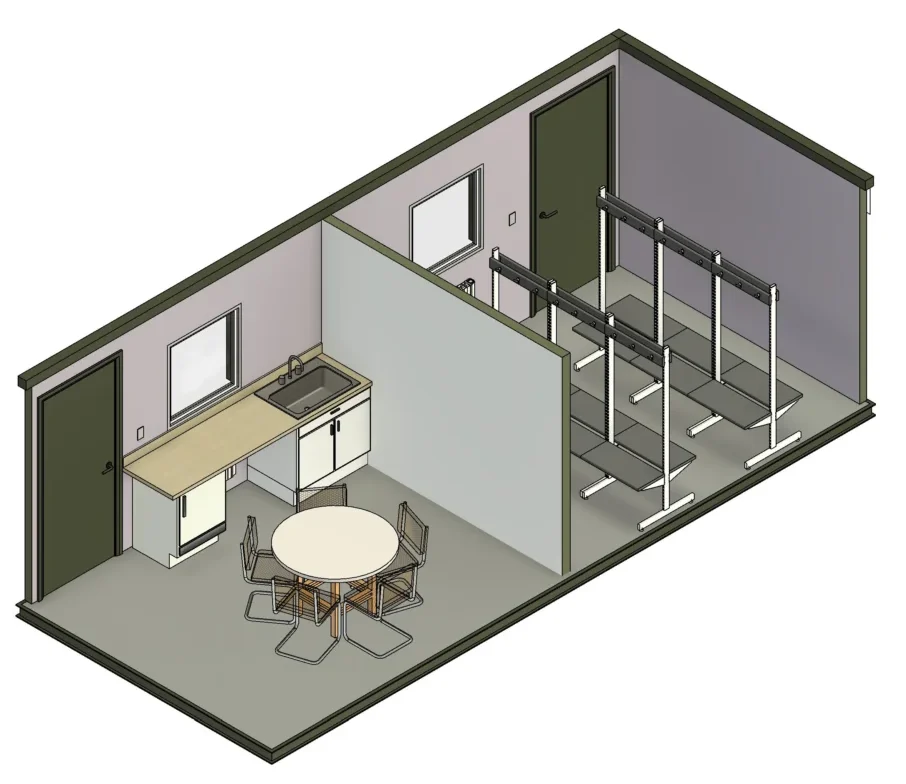

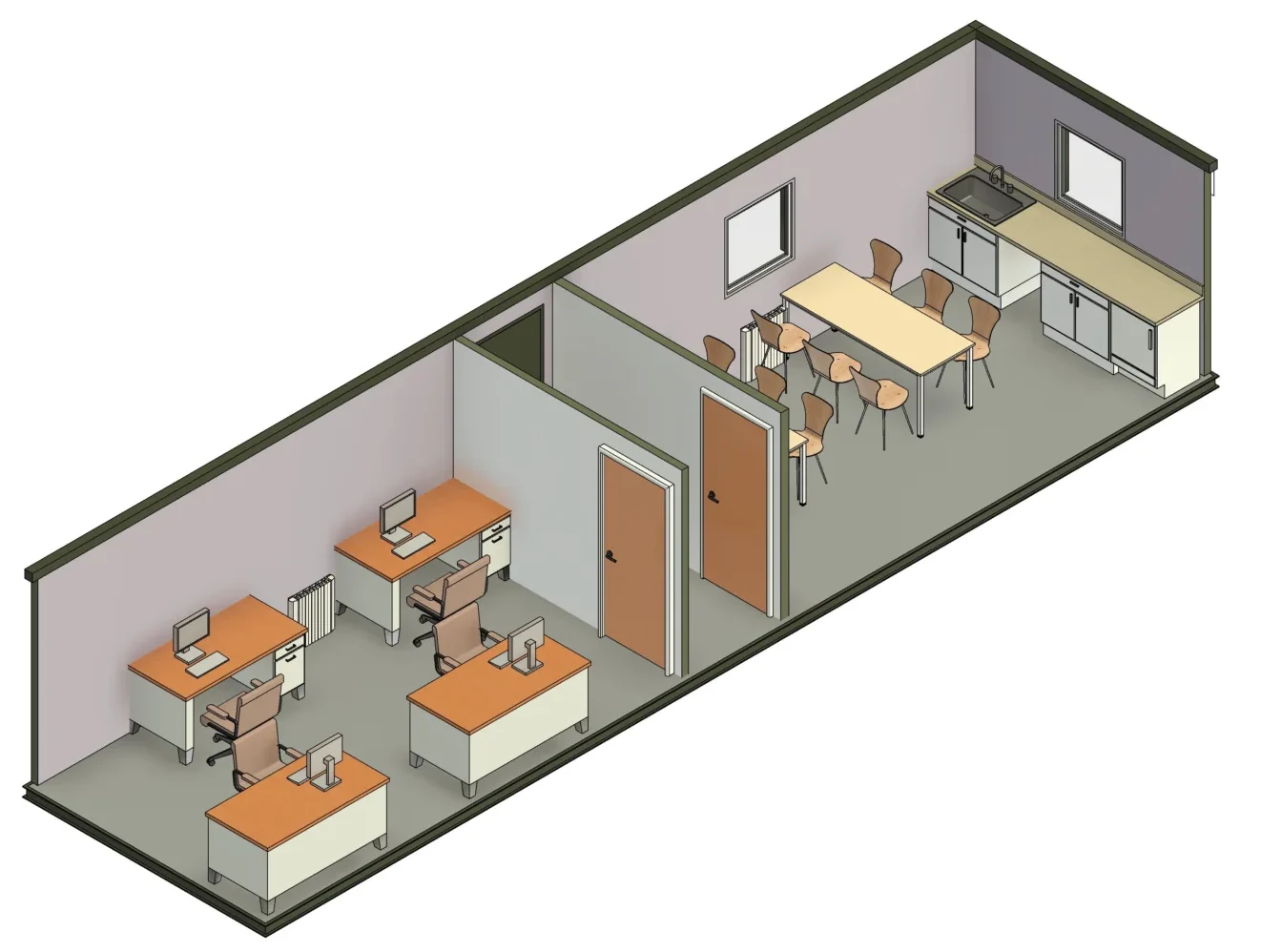

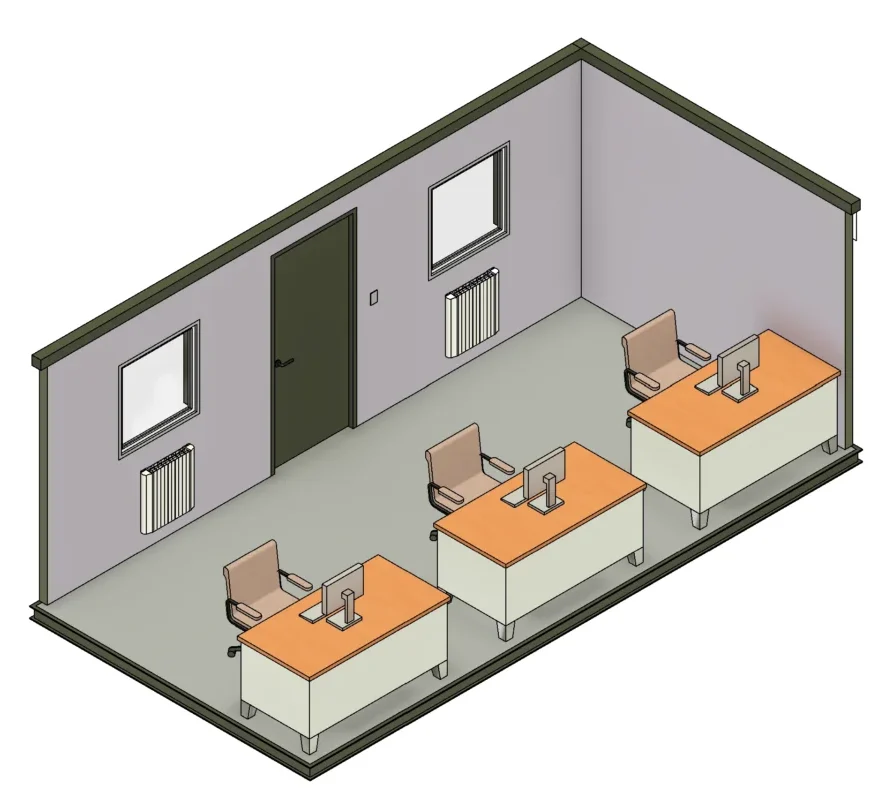

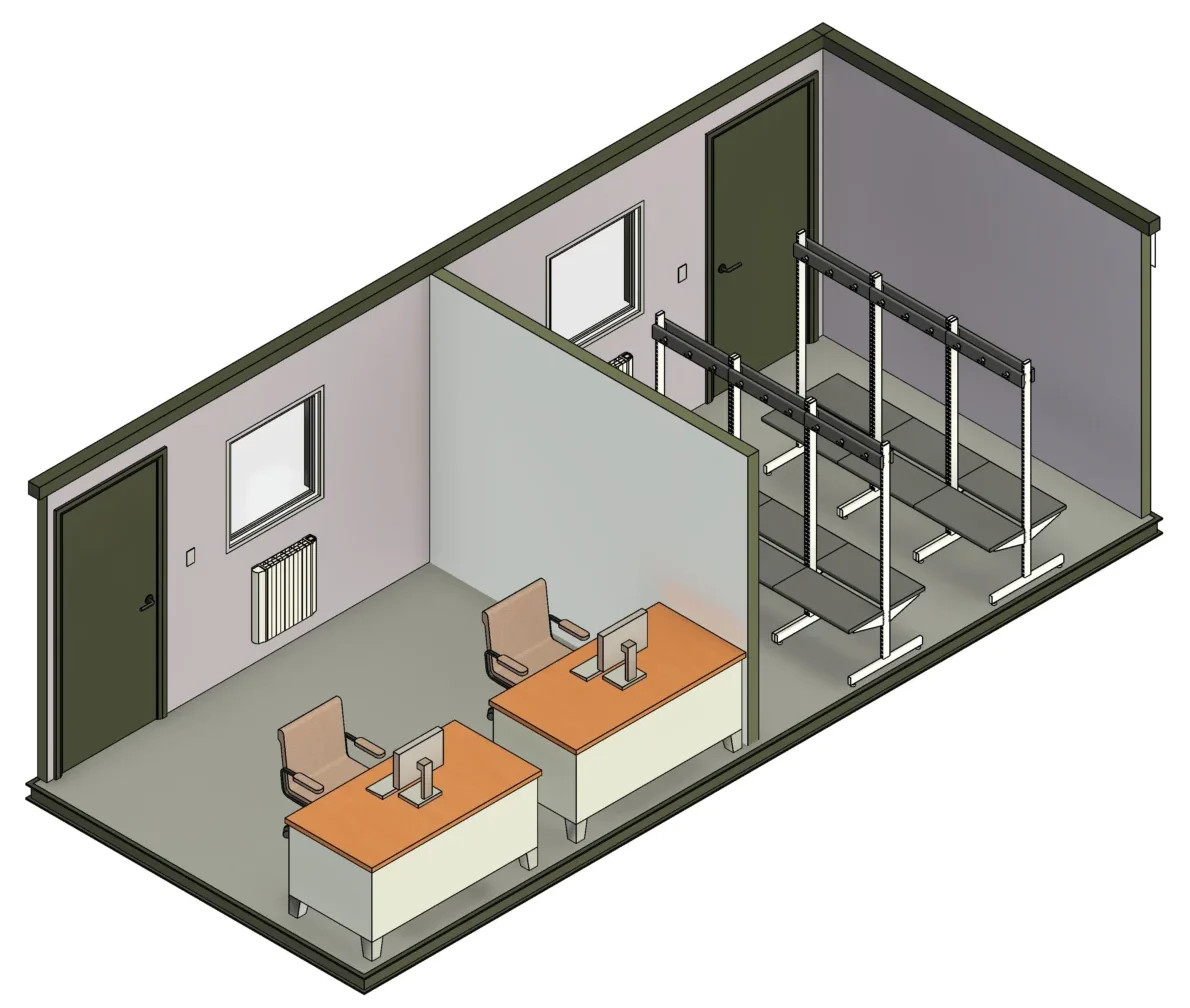

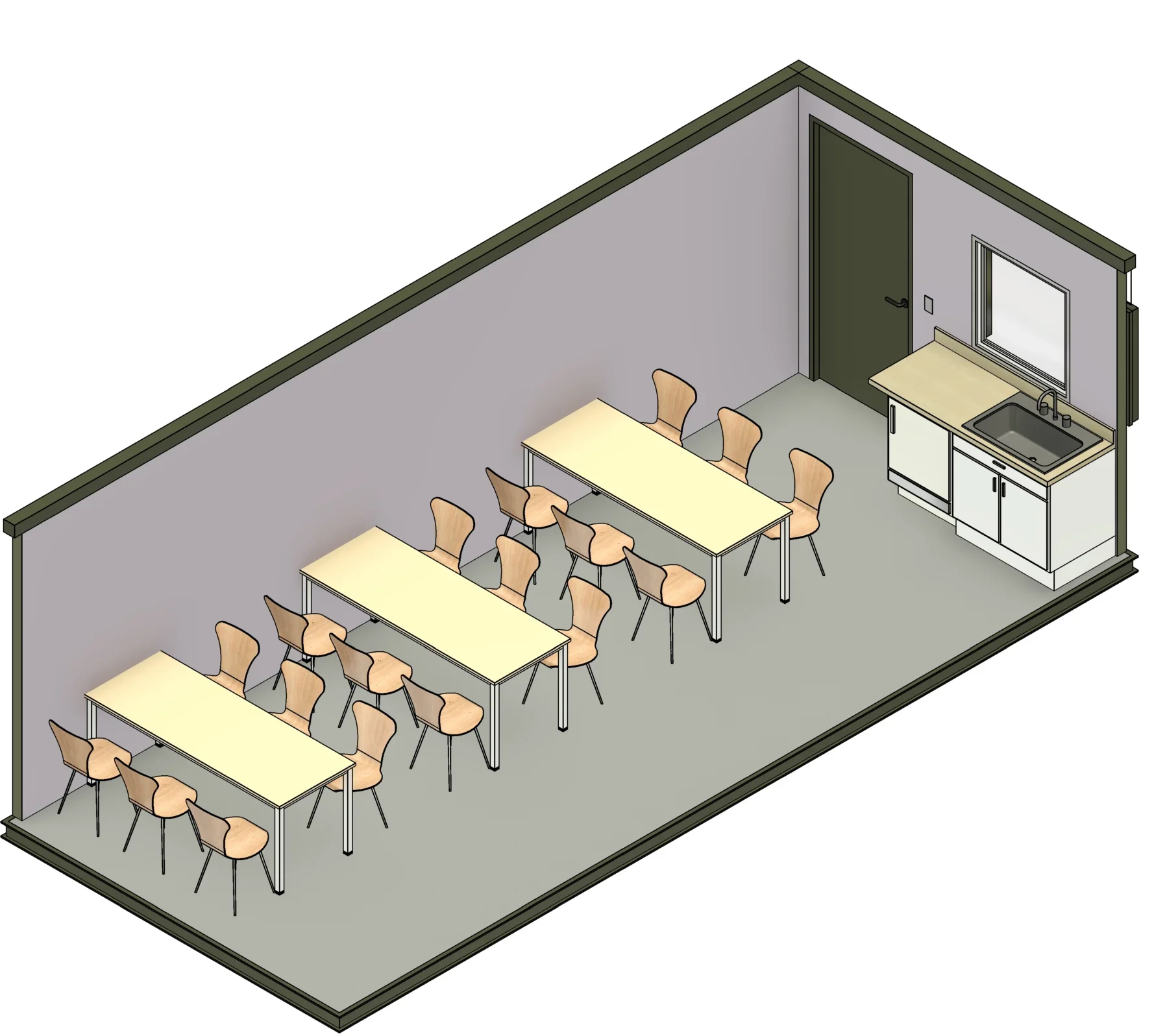

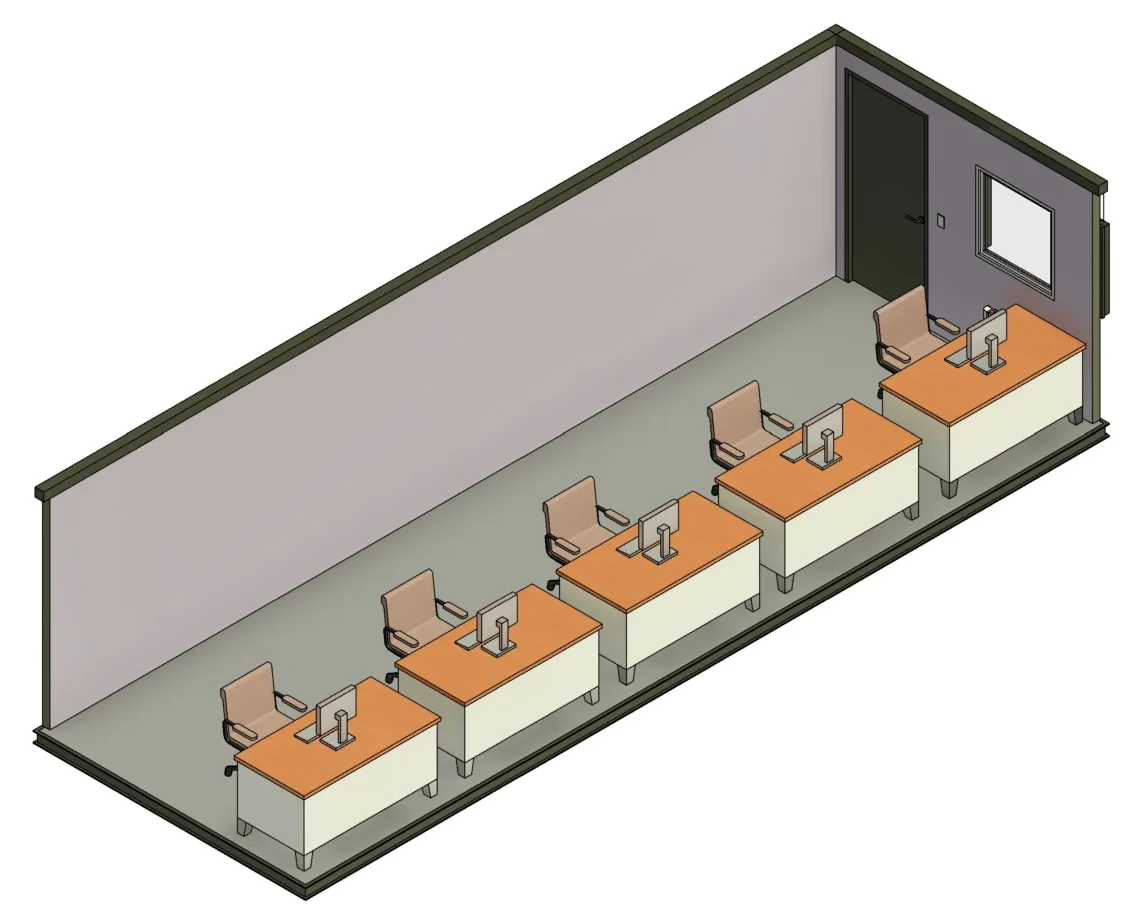

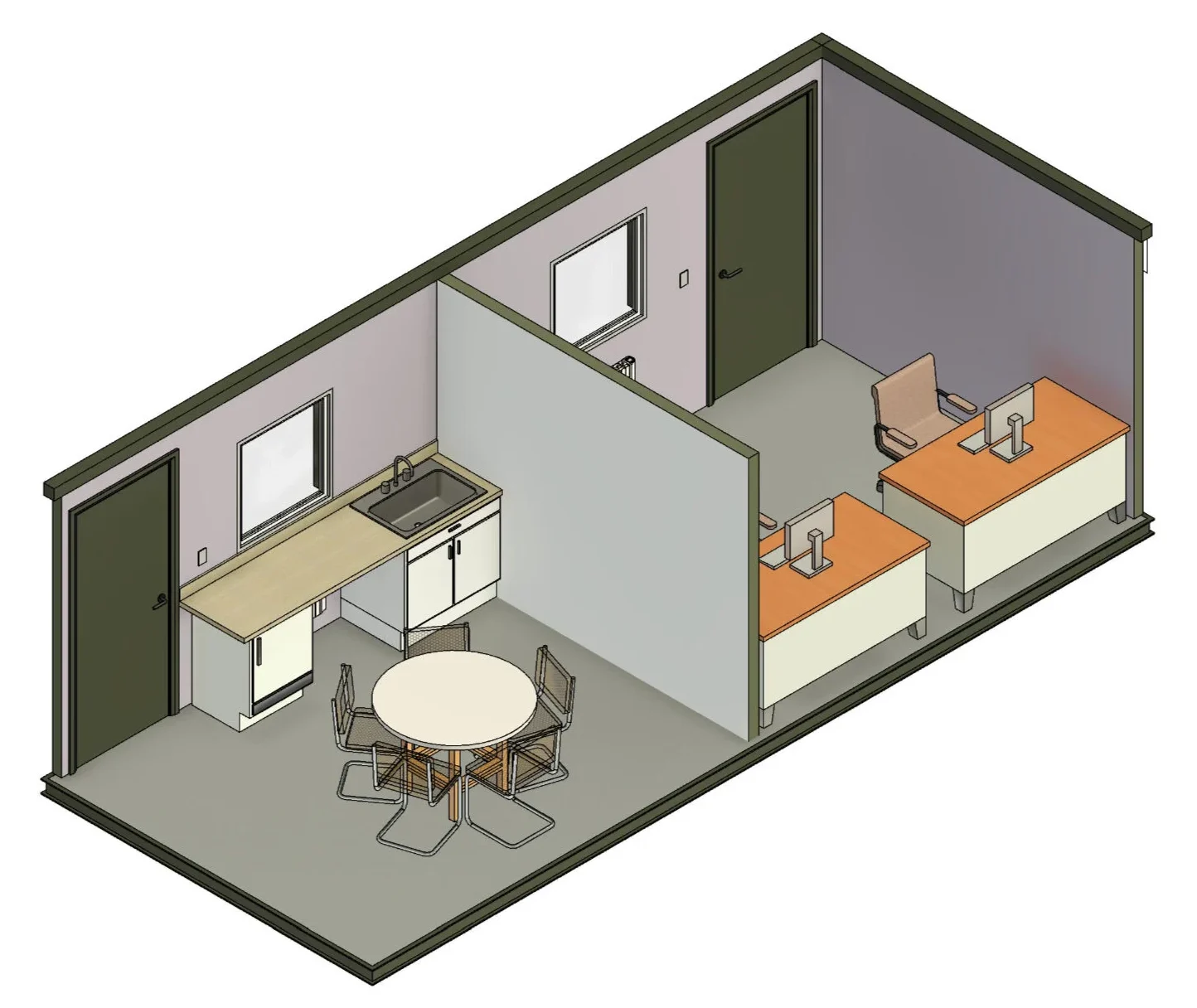

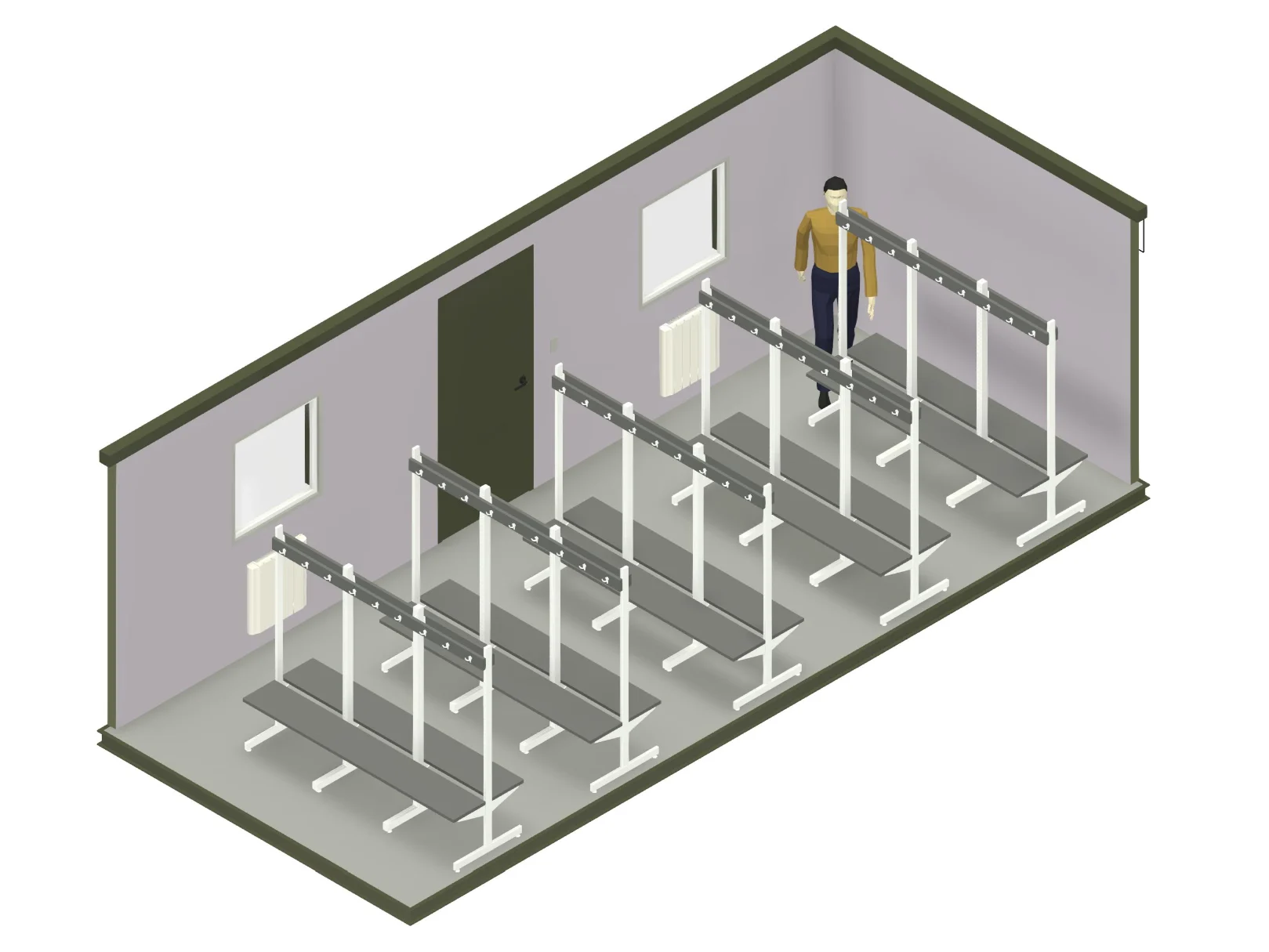

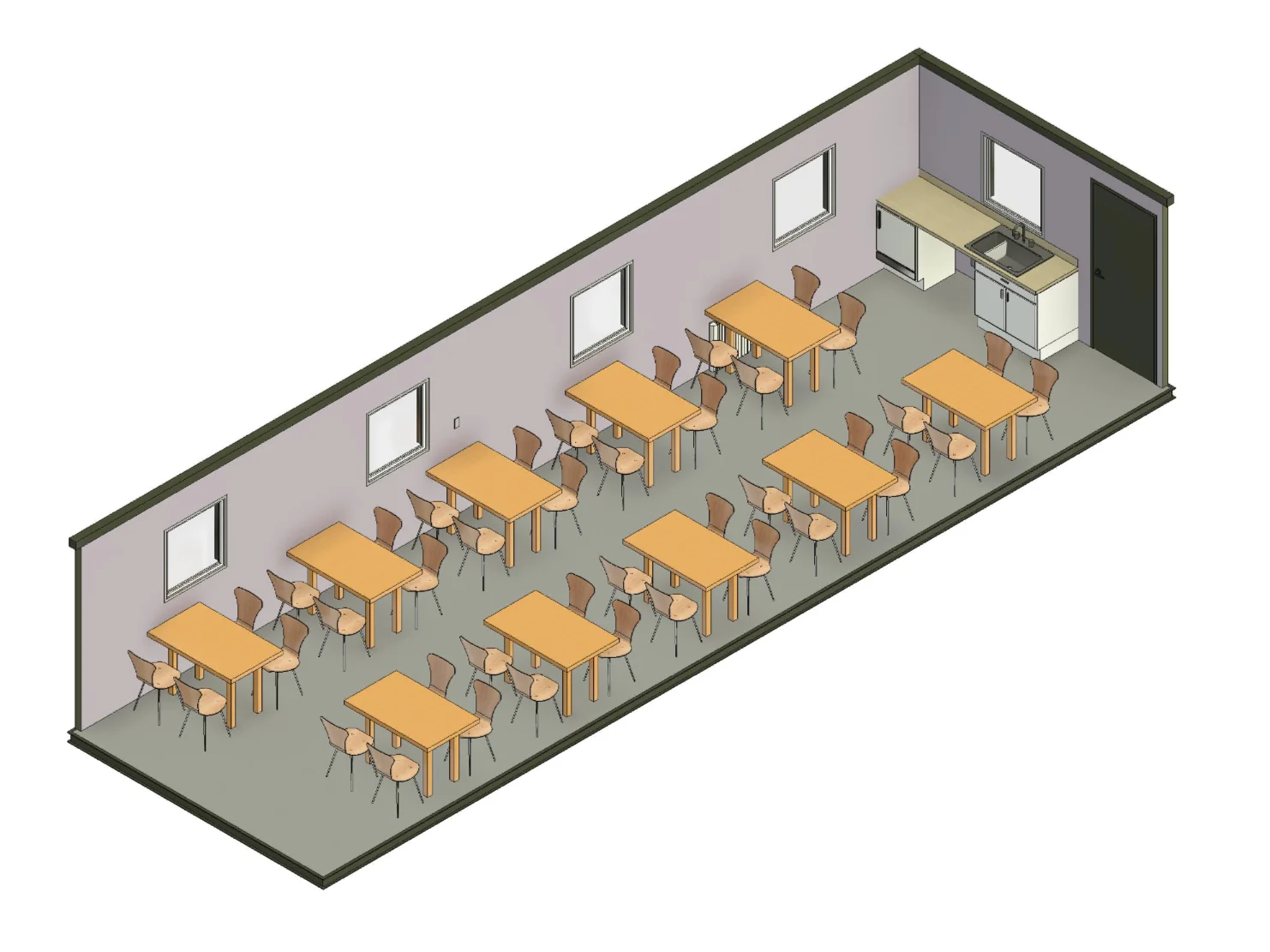

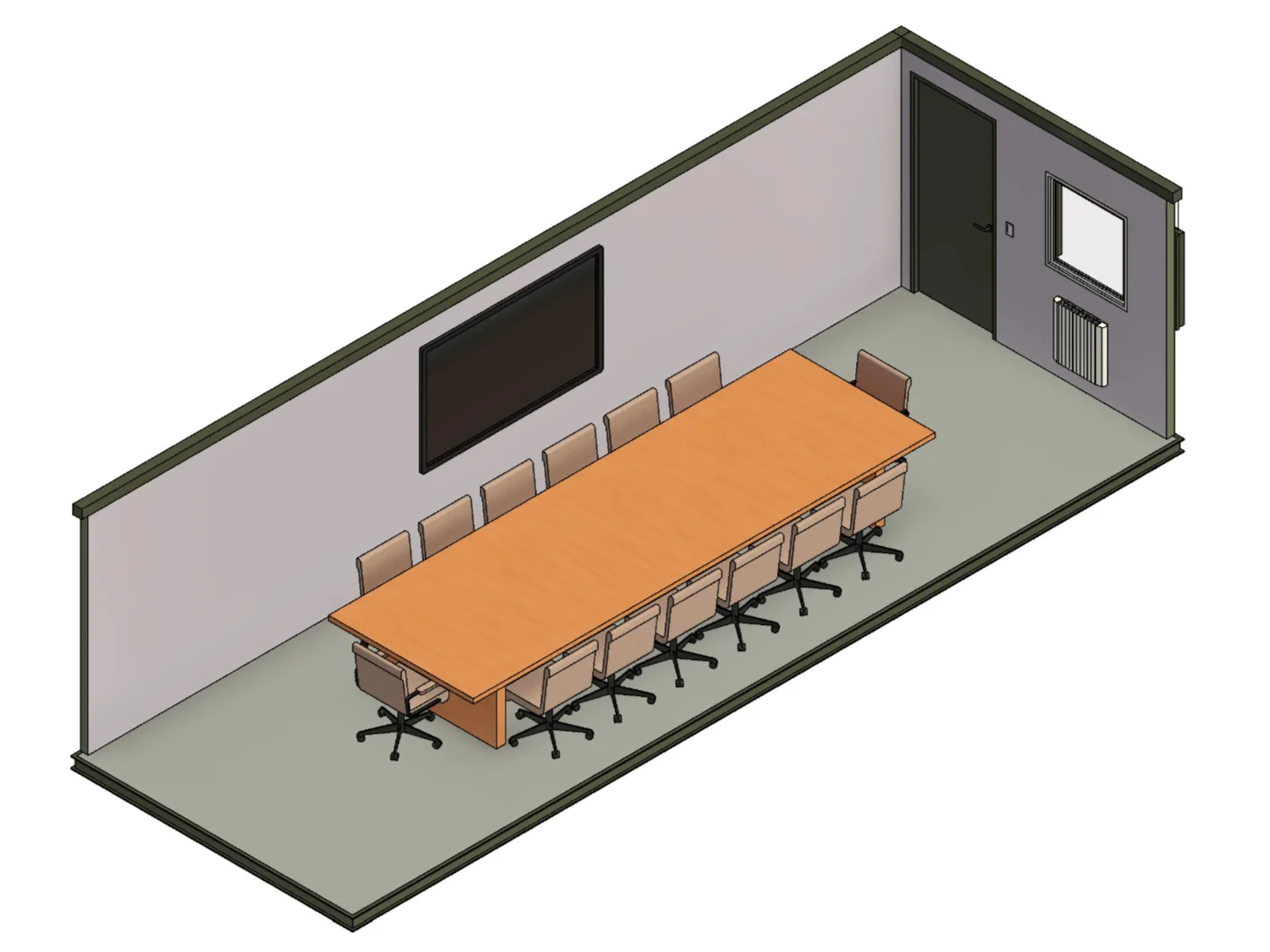

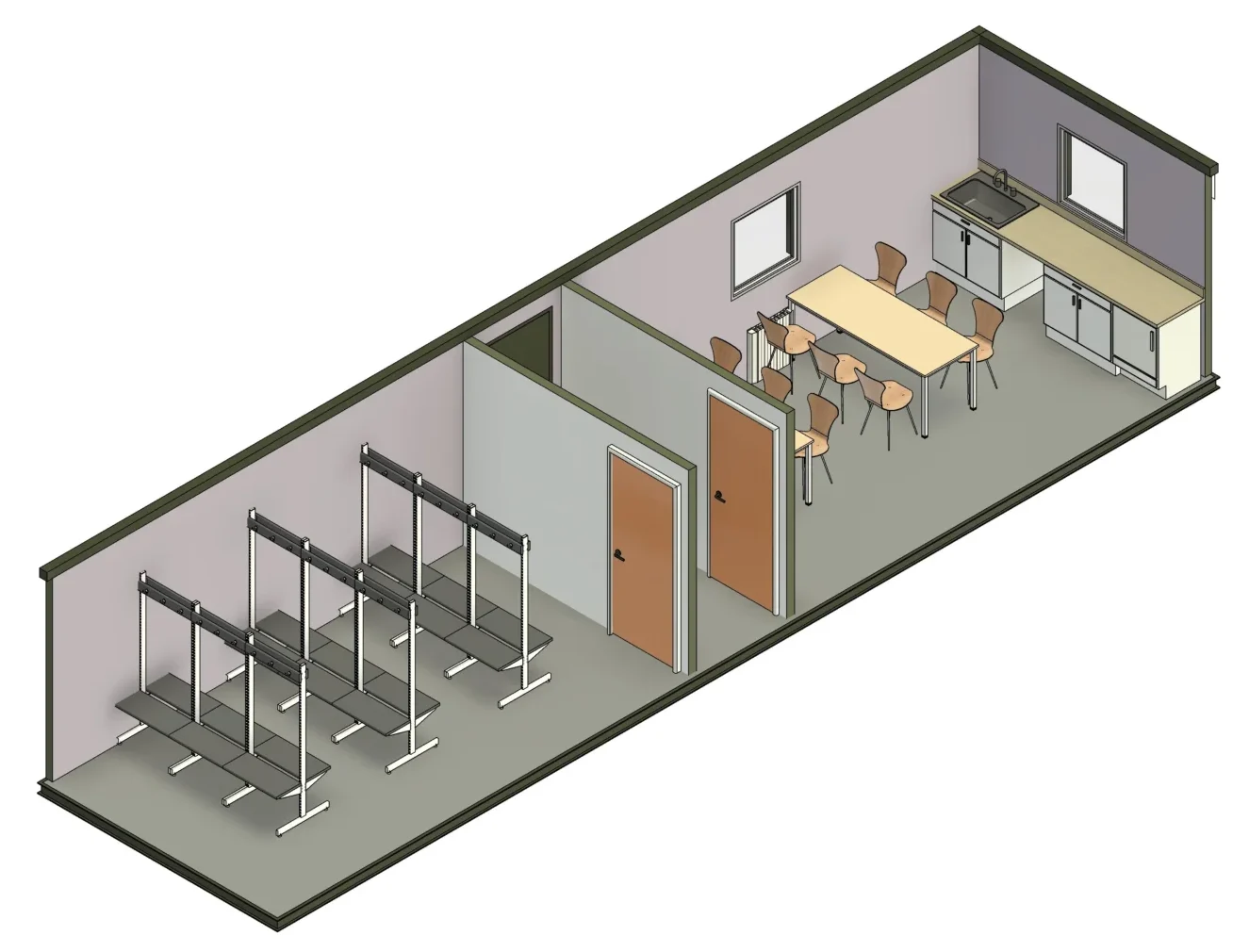

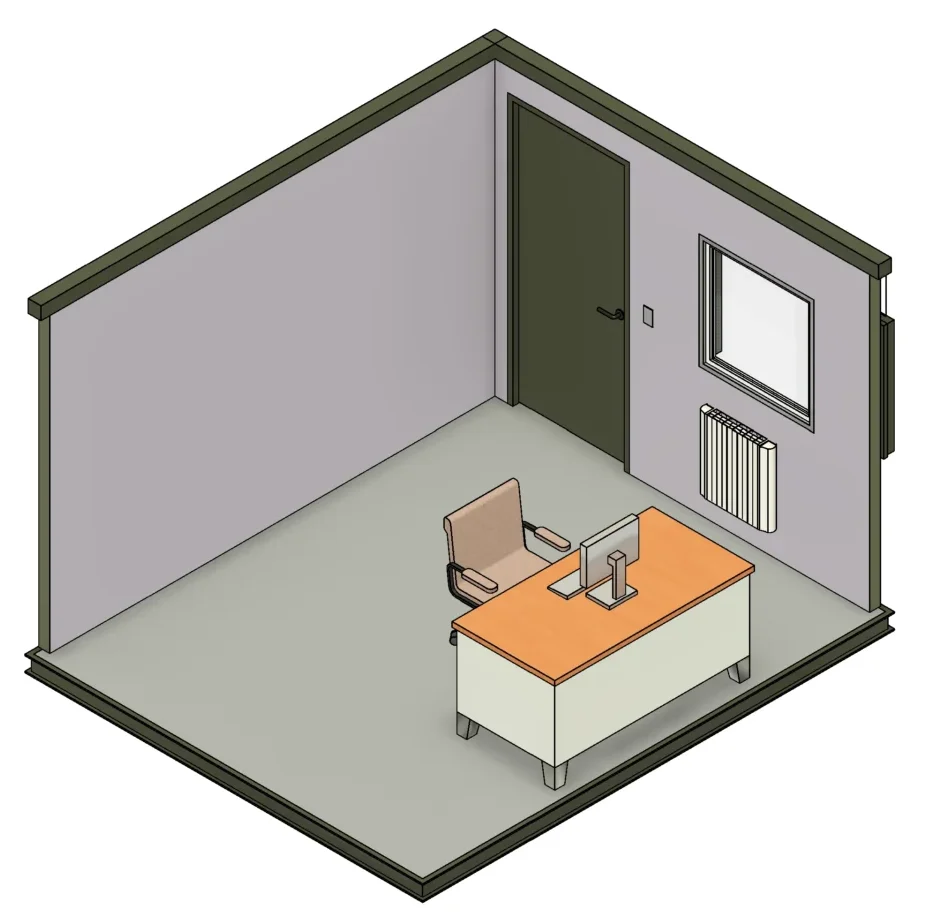

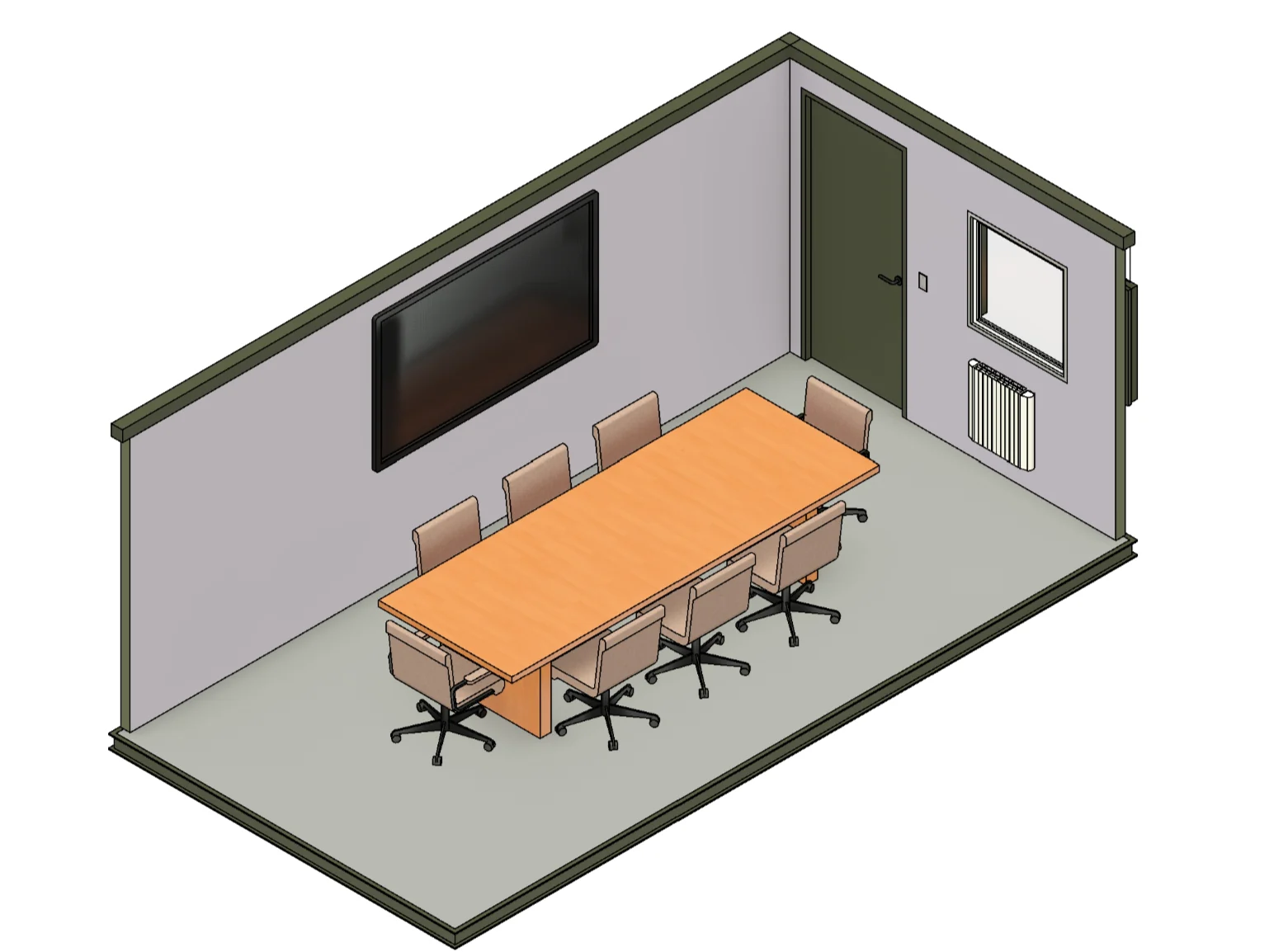

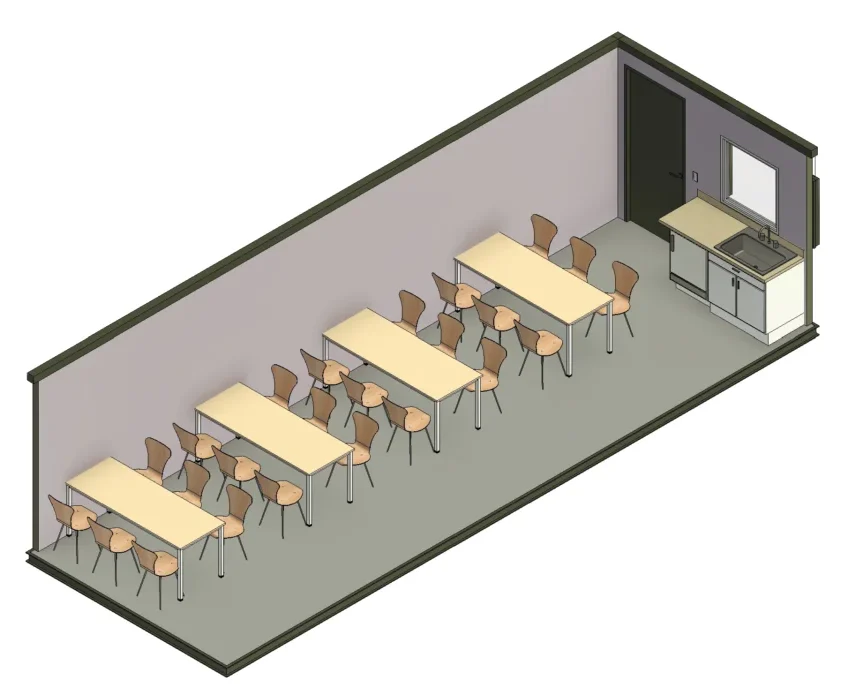

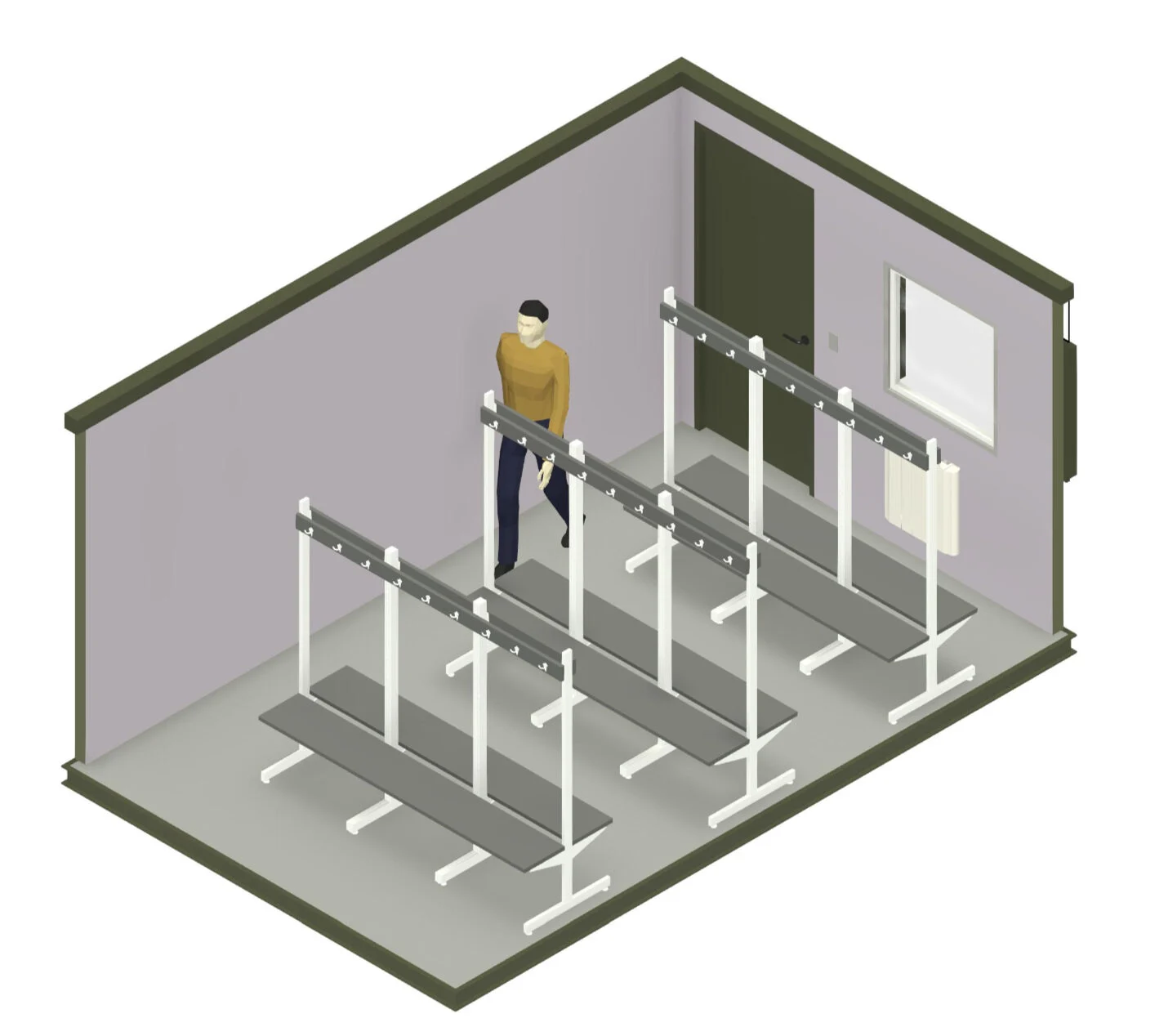

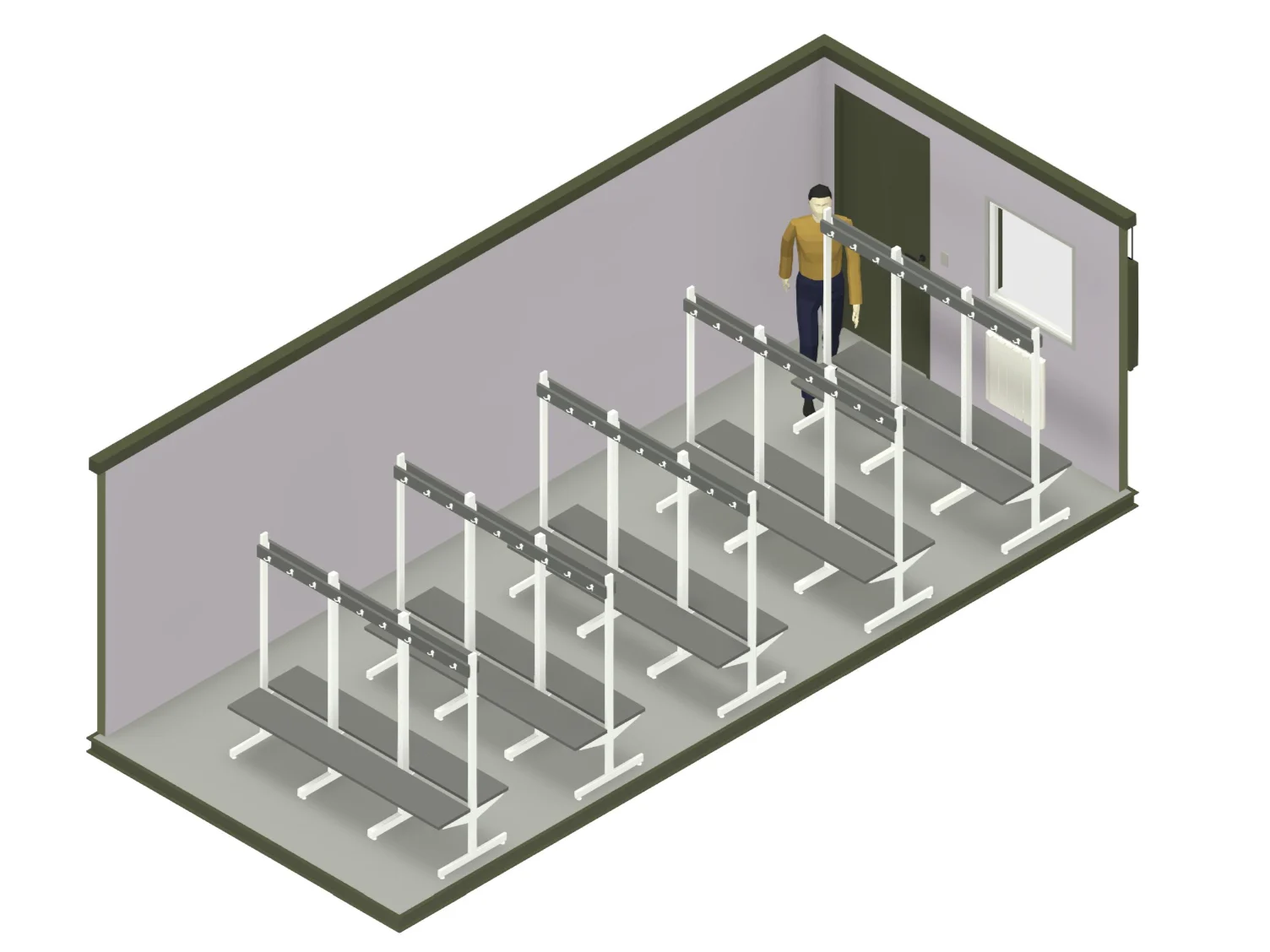

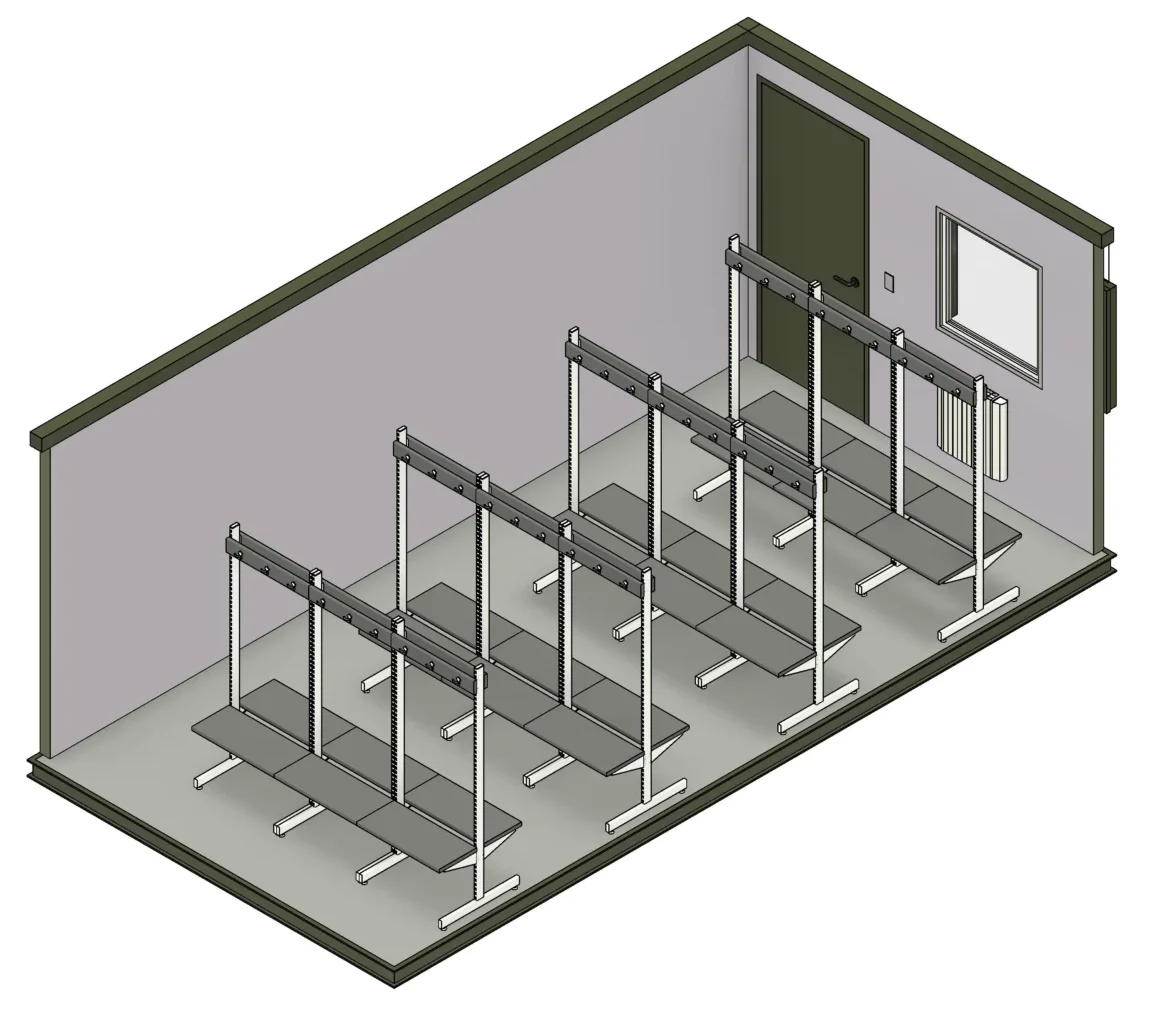

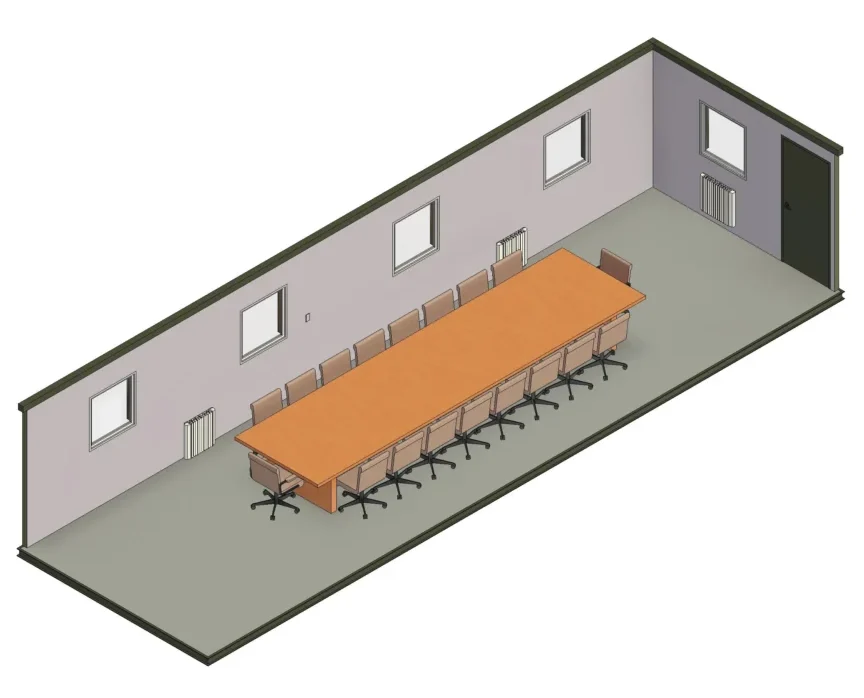

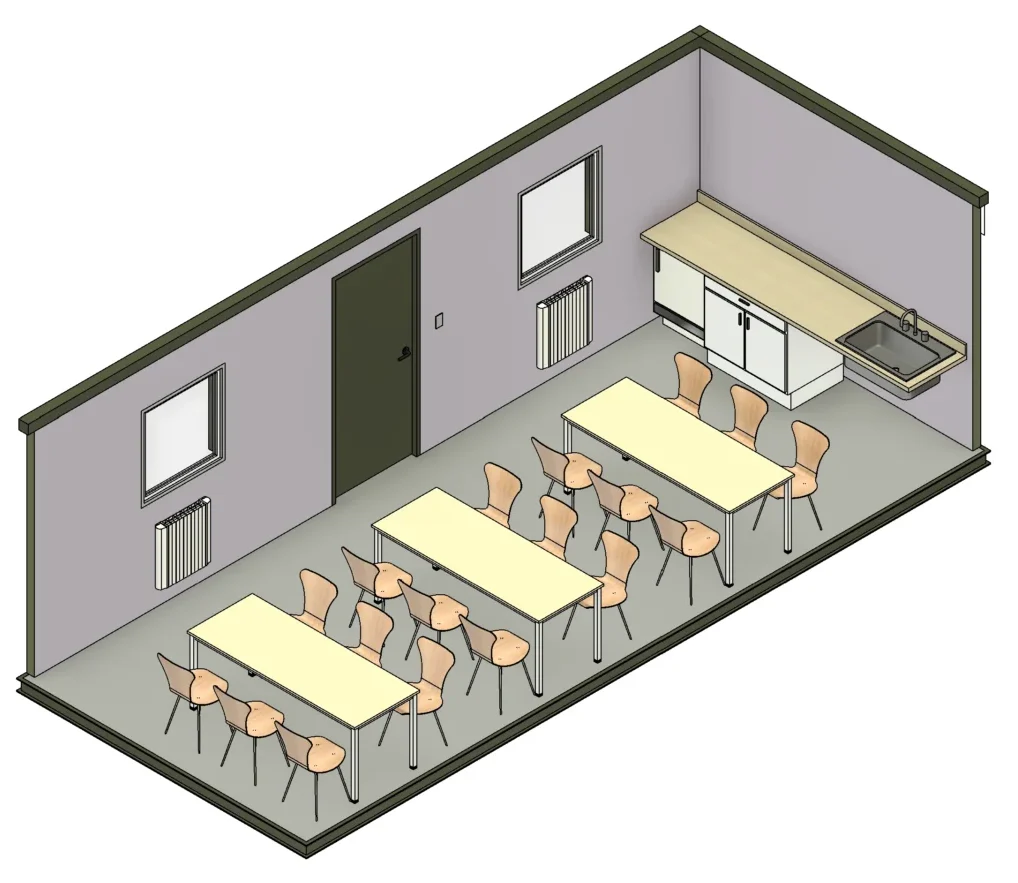

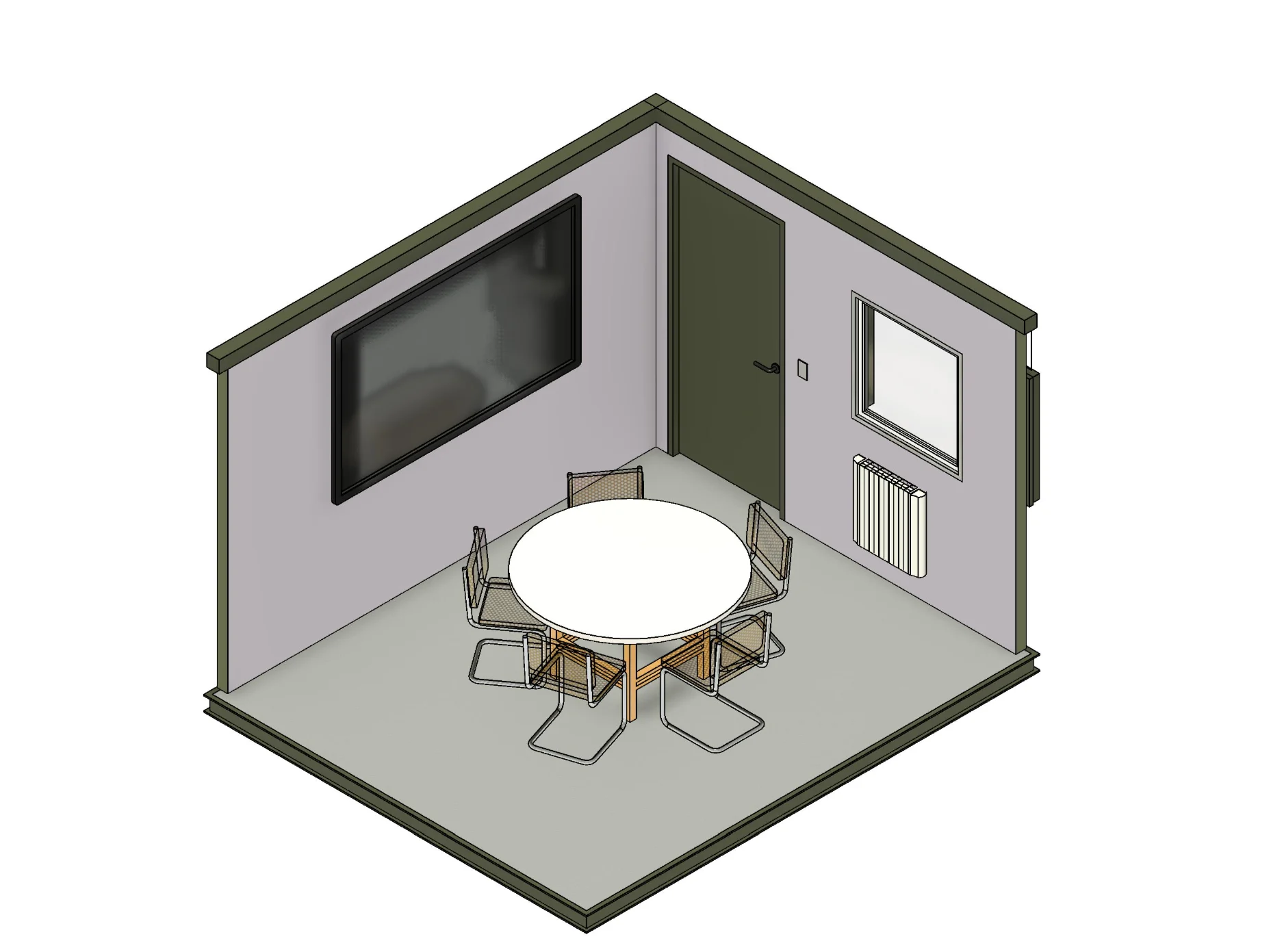

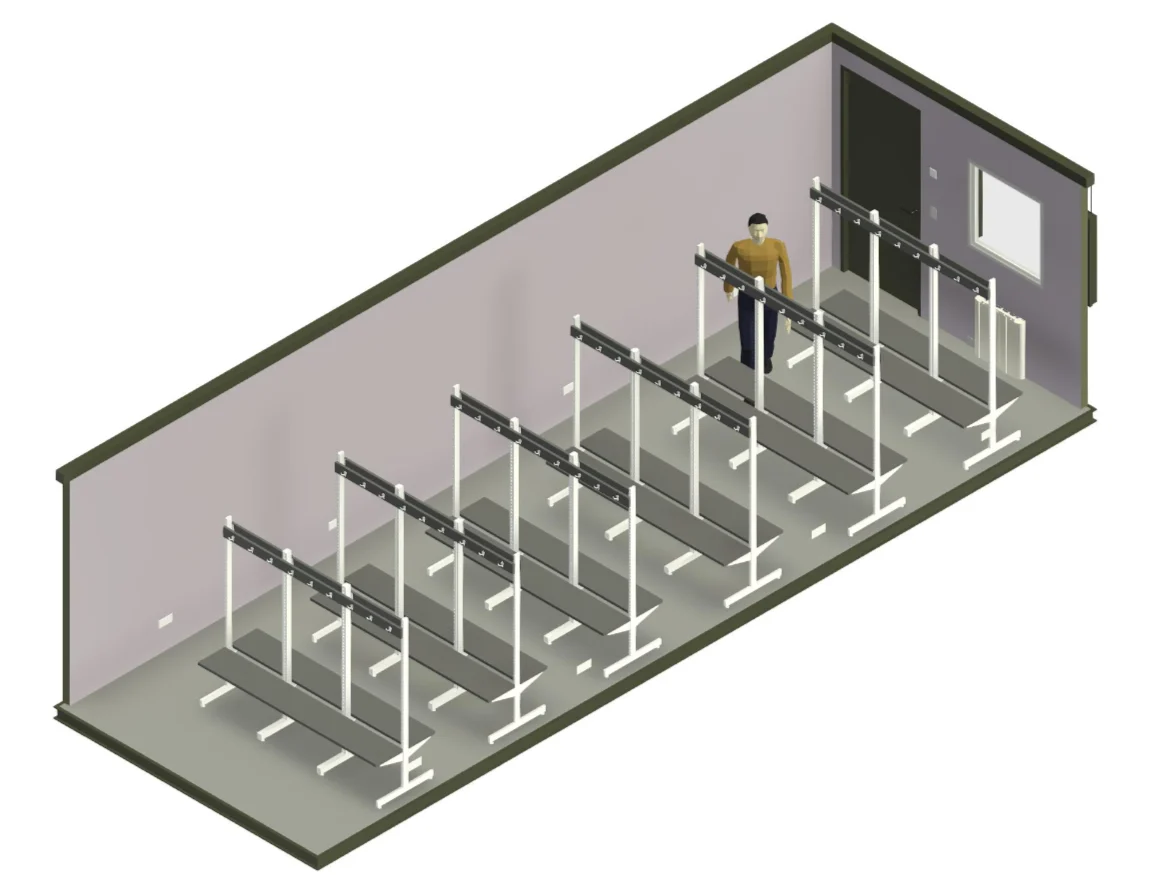

Our high-quality Antivandal Cabins offer durable and secure solutions for various site needs. Whether you need offices, canteens, drying rooms, meeting rooms, or split cabins, these robust units provide the perfect blend of security and functionality. Designed to withstand harsh conditions while maintaining a comfortable environment, our Antivandal Cabins cater to a wide range of applications. Trust Hayes Cabin Services for reliable and flexible Antivandal cabin solutions
Antivandal Specification
Interior Finish
The interior features 12.5mm vinyl-faced plasterboard walls, PVC tilt & turn windows, a ceiling finished with vinyl-faced ply, and 30mm HD insulation. It's internally wired to a consumer unit with relevant breakers for safety.
Exterior Finish
The exterior features a robust base frame made of 125mm x 65mm rolled steel, complemented by unique block-pressed steel panels. Fully welded for durability, it is coated with high zinc phosphate for corrosion resistance. Integrated steel jacklegs and top lifting points facilitate easy transportation and installation.
Roof Structure
The roof is equipped with 30mm HD insulation (0.35 W/m.k) for optimal temperature control. Supporting the roof are 3 x 2 timbers spaced at 600mm intervals. Additionally, a polythene vapor barrier is installed to prevent moisture penetration.
Floor Structure
The floor comprises 25mm T&G plywood spruce for durability and stability. Steel floor joists provide structural support, ensuring strength and longevity. The floor is further reinforced with timber framework spaced at 400mm intervals for additional support.
